Tunable & RGBW Linears

1 4

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Part#  1896-2-1

$0.00 USD
$0.00 USD
Sale Sold out
The Tunable & RGBW Linears is made-to-order (2-4 week lead time). Volume discounts reflected in cart; contact Sales for large or custom orders.

QUICK SPECS

    SpekLED® family of linear LED boards are available in either constant voltage or constant current modes and provide a low-cost and high-performance solution a wide range of LED lighting products, including recessed/slot linear, troffer, pendant, and suspended LED luminaires

    Standard or custom lengths and multiple color temperature options (2700K, 3000K, 3500K, 4000K, RGB, RGB+W and Tunable White) allow SpekLED® LED engines to be applicable to nearly every project. CRI values of 90+ are also available and all products have a 50,000 hour life expectancy and a 5-year warranty.

    Up to 200lm/W efficacy and color performance in a range of lengths up to 4ft (1200mm) with choice of drive circuits and connectors.

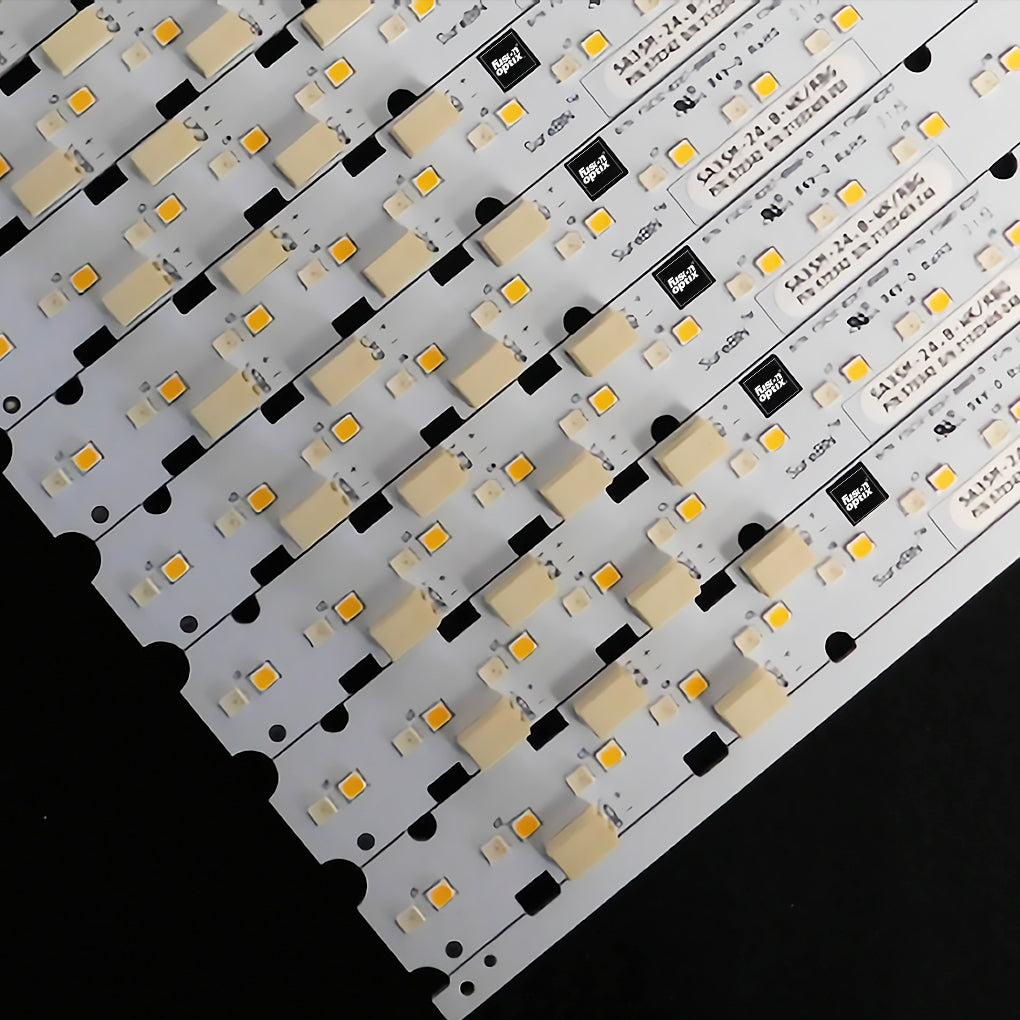

    SpekLED™ CentreLine Linear LED Boards

    Module P/N Watts / Lumens I mA Vf Length x Width (mm) LED
    FOM01-0262 6 / 1080 167 36 280 x 20 1C/5630/3P12S
    FOM01-0068 5 / 900 167 30 280 x 20 1C/5630/3P10S
    FOM01-0097 16 / 2800 533 30 597 x 9 1C/5630/8P10S
    FOM01-0103 16 / 5460 533 30 582 x 13 1C/5630/8P10S
    FOM01-0223 24 / 4200 800 30 600 x 13 1C/3030/12P10S

    *For all: Drive-Constant Current; Efficacy-175 lm/W; Type-2ft
