Sample Kit – PMMA Diffusion Sheet (>1.5mm)

1 4

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Part#  Sample Kit – PMMA Diffusion Sheet (>1.5mm)

$25.00 USD
$25.00 USD
Sale Sold out
The Sample Kit – PMMA Diffusion Sheet (>1.5mm) is made-to-order (2-4 week lead time). Volume discounts reflected in cart; contact Sales for large or custom orders.

QUICK SPECS

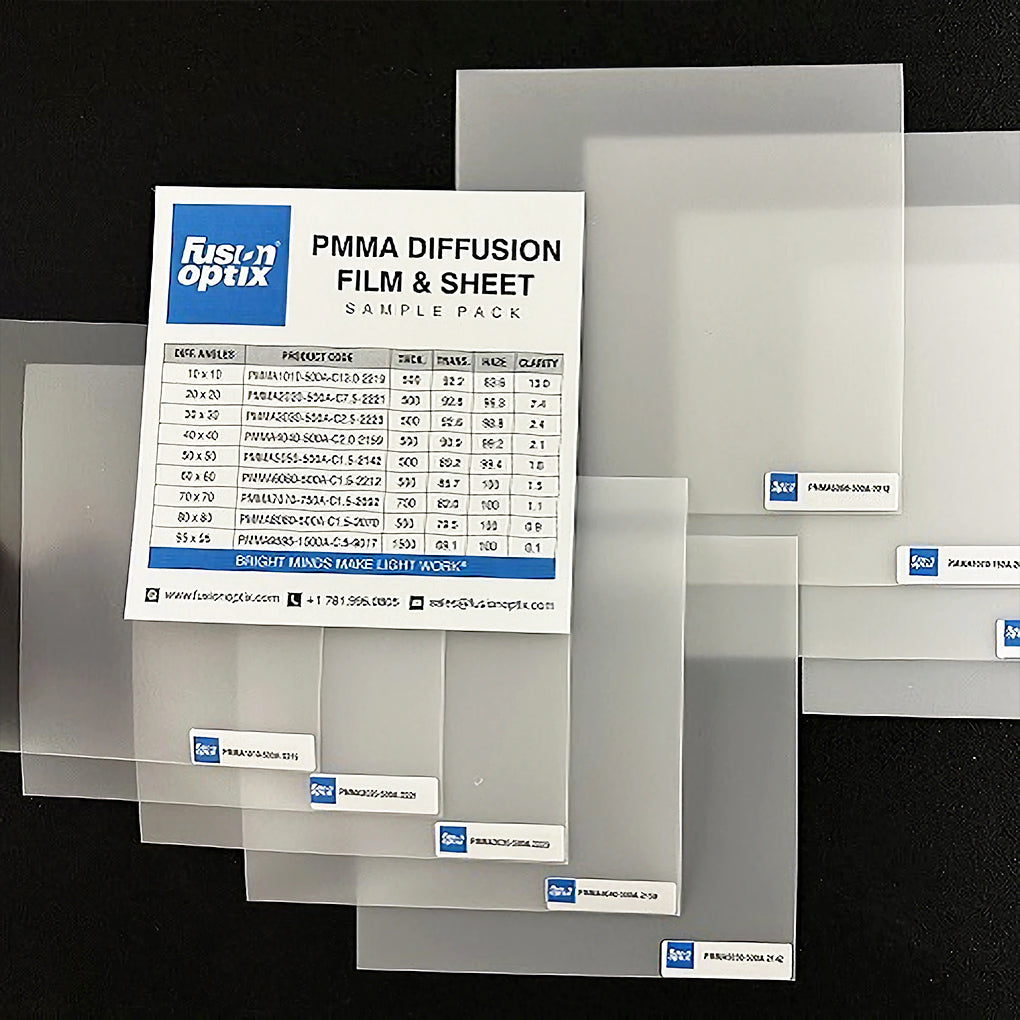

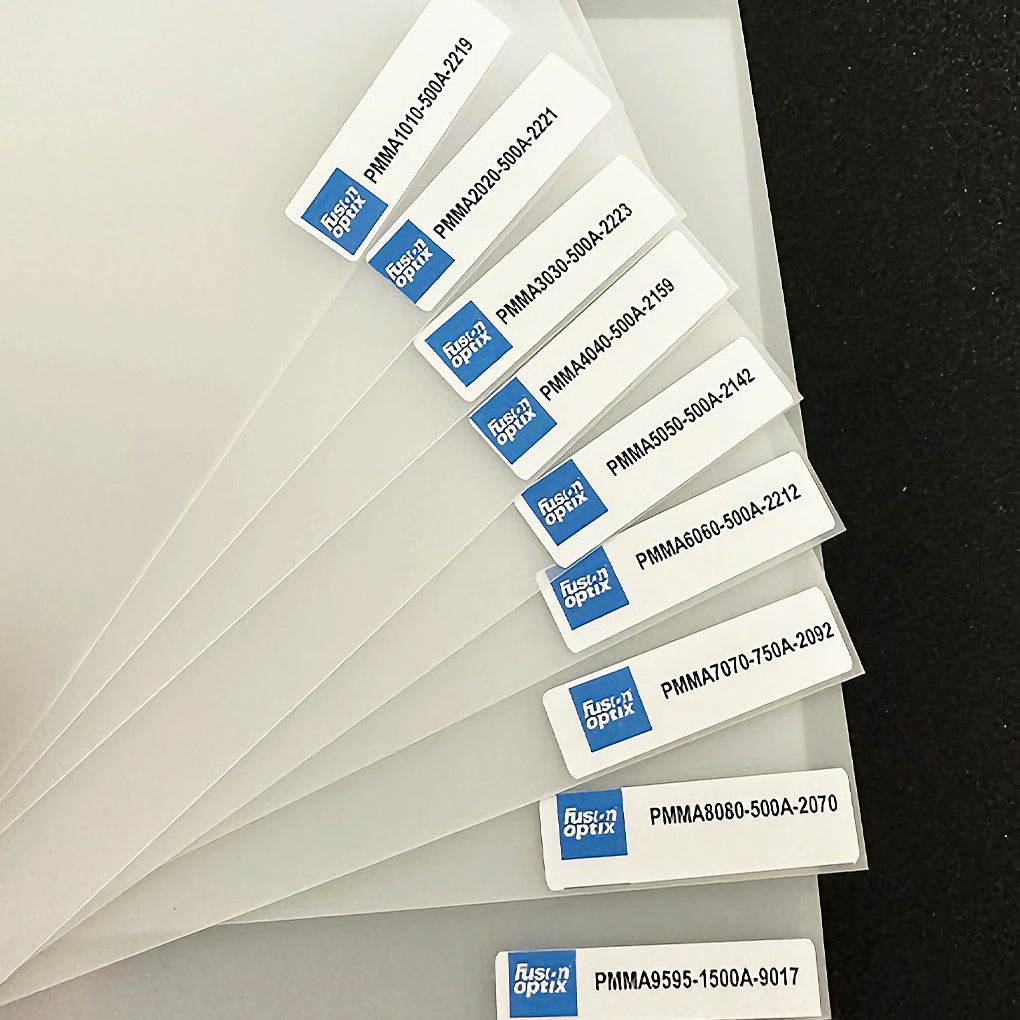

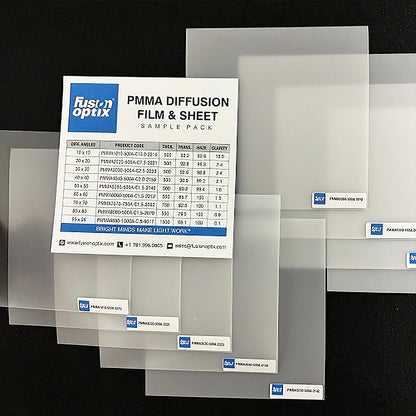

    Collection of our most popular high efficiency rigid PMMA (acrylic) diffusion sheet products. The samples range in thickness from 1.5mm up to 3mm and are cut to a convenient 6″ x 6" size. The range provides a variety of circular diffusion angles, haze and clarity.

    Ordering Details

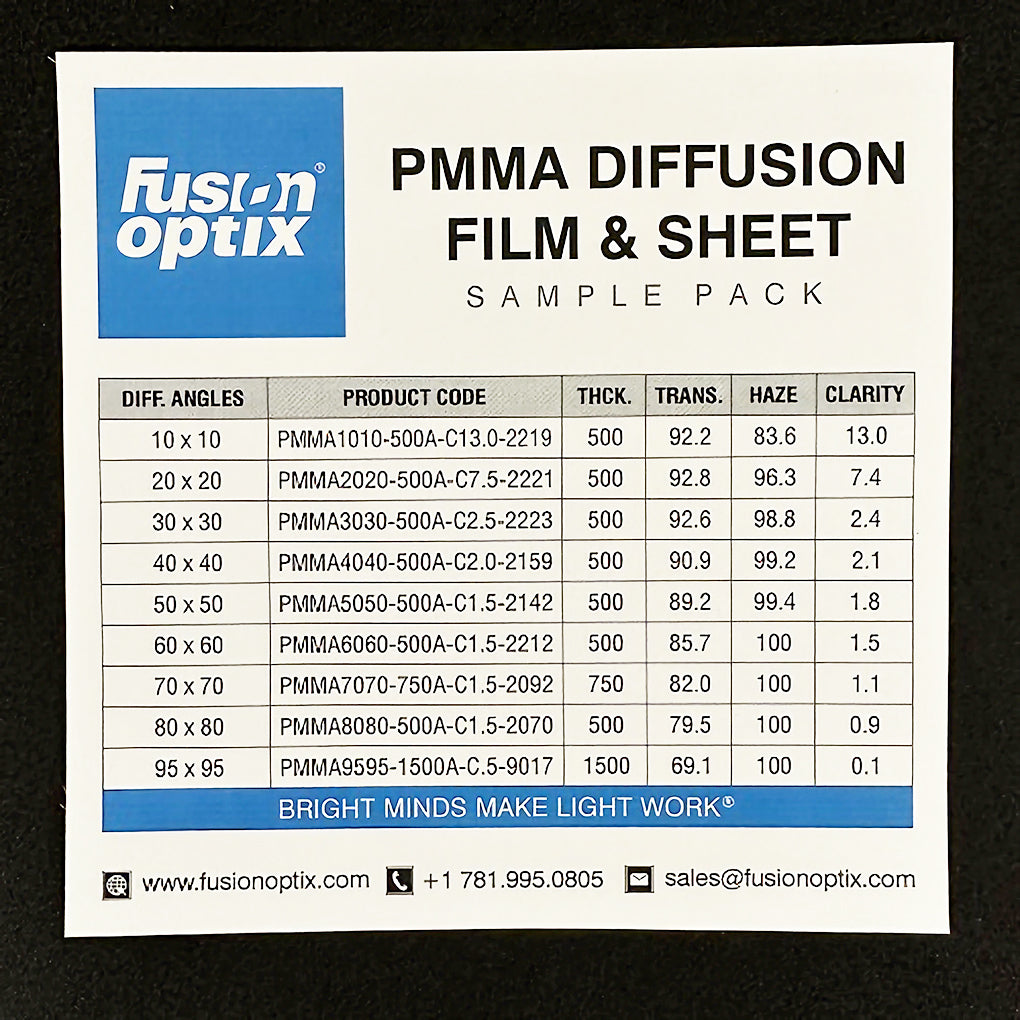

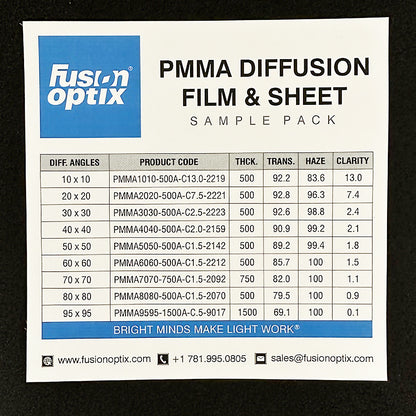

    Order Code Sheet Material Code Gauge FWHM-X / FWHM-Y T% / H% / C%
    FOR04-0093-0000 12in x 500ft PMMA8080-800A-2071 800um 80° x 80° 60 / 100 / 1.5
    FOR04-0093-0000 12in x 500ft PMMA8080-300A-2127 800um 80° x 80° 70 / 100 / 1.8
    FOR04-0070-0000 6in x 500ft PMMA6060-550A-2002 350um 60° x 60° 75 / 100 / 2
    FOR04-0085-0000 12in x 500ft PMMA6060-500A-2071 550um 60° x 60° 75 / 100 / 2.1
    FOR04-0111-0000 12in x 500ft PMMA4040-250A-2088 500um 40° x 40° 80 / 100 / 3
    FOR04-0128-0000 6in x 500ft PMMA4040-200A-2138 250um 40° x 40° 84 / 100 / 4
    FOR04-0136-0000 12in x 500ft PMMA4040-200A-2014 200um 40° x 40° 85 / 100 / 4.1
    FOR04-0116-0000 6in x 500ft PMMA3030-250A-2135 200um 30° x 30° 88 / 100 / 6
    FOR04-0134-0000 12in x 500ft PMMA3030-250A-2014 250um 30° x 30° 93 / 100 / 2.9
    FOR04-0084-0000 6in x 500ft PMMA3030-200A-2051 250um 30° x 30° 93 / 100 / 3
    FOR04-0055-0002 6in x 500ft PMMA2020-200A-2121 200um 20° x 20° 85 / 100 / 2.7
    FOR04-0035-0000 6in x 500ft PMMA1515-125A-2010 200um 15° x 15° 94 / 100 / 8
    FOR04-0145-0000 6in x 500ft PMMA1515-250A-2035 250um 15° x 15° 92 / 88 / 7
    FOR04-0112-0000 6in x 500ft PMMA1010-175A-2106 125um 10° x 10° 94 / 98 / 3.4
    FOR04-0098-0000 6in x 500ft PMMA1010-125A-2010 175um 10° x 10° 95 / 100 / 12
    FOR04-0057-0001 6in x 500ft PMMA1010-250A-2110 125um 10° x 10° 95 / 95 / 15

    Operating Temperatures = -30C to 100C | ROHS Compliant
