PC Diffusion Sheet

1 4

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Part#  1941

$0.00 USD
$0.00 USD
Sale Sold out
The PC Diffusion Sheet is made-to-order (2-4 week lead time). Volume discounts reflected in cart; contact Sales for large or custom orders.

QUICK SPECS

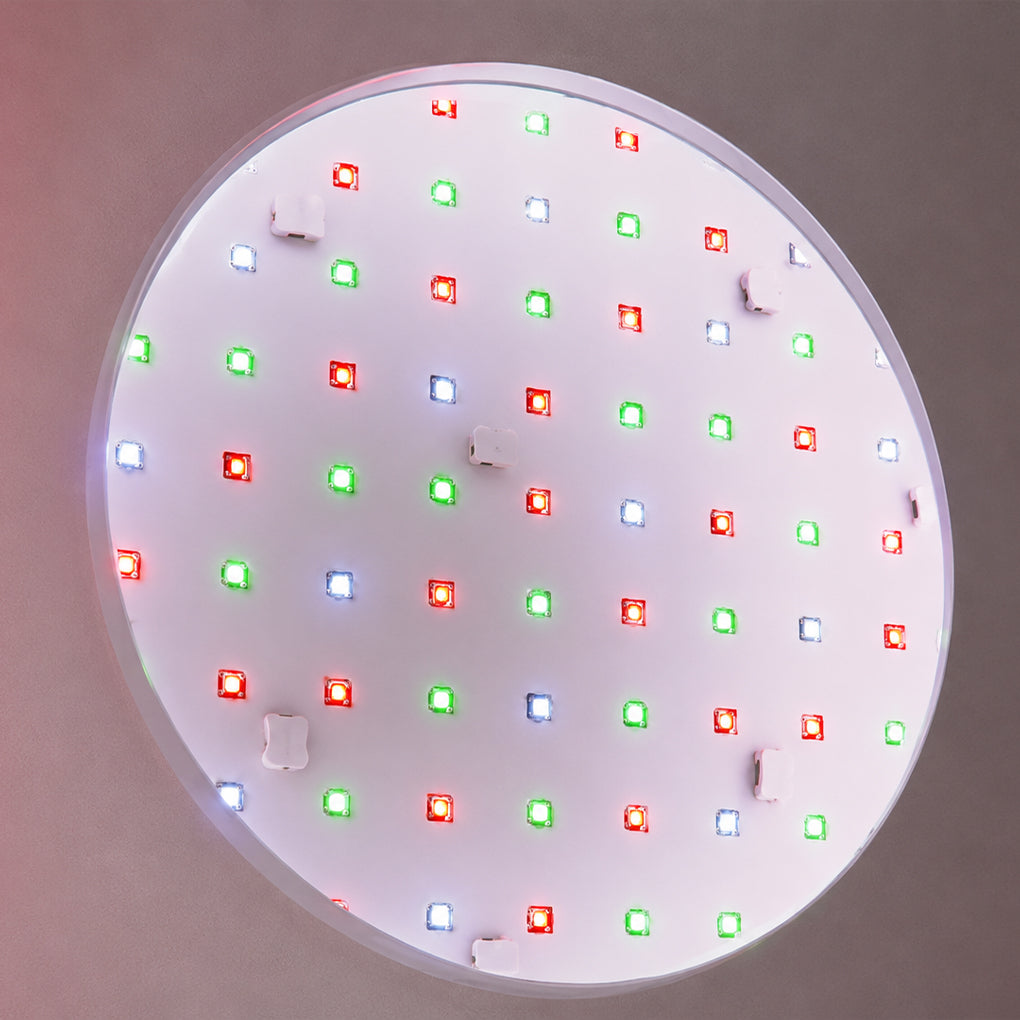

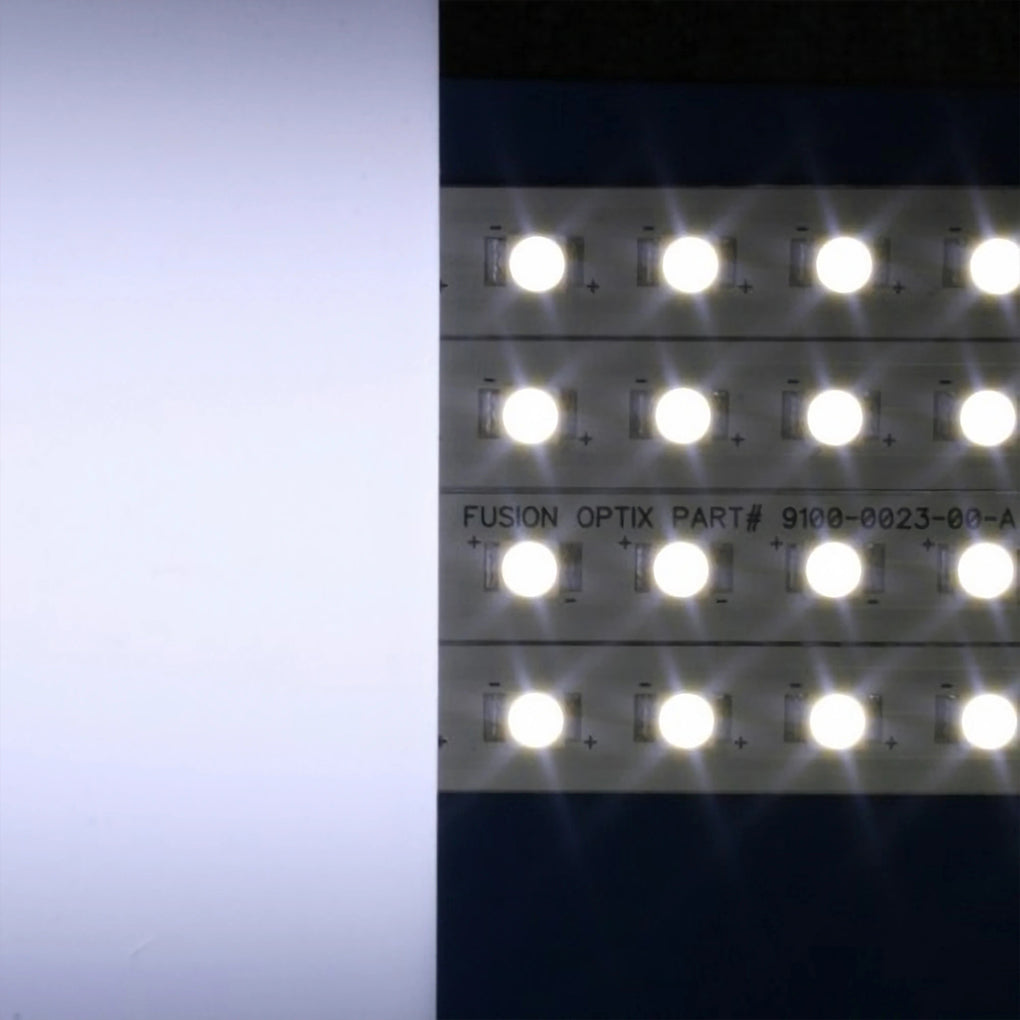

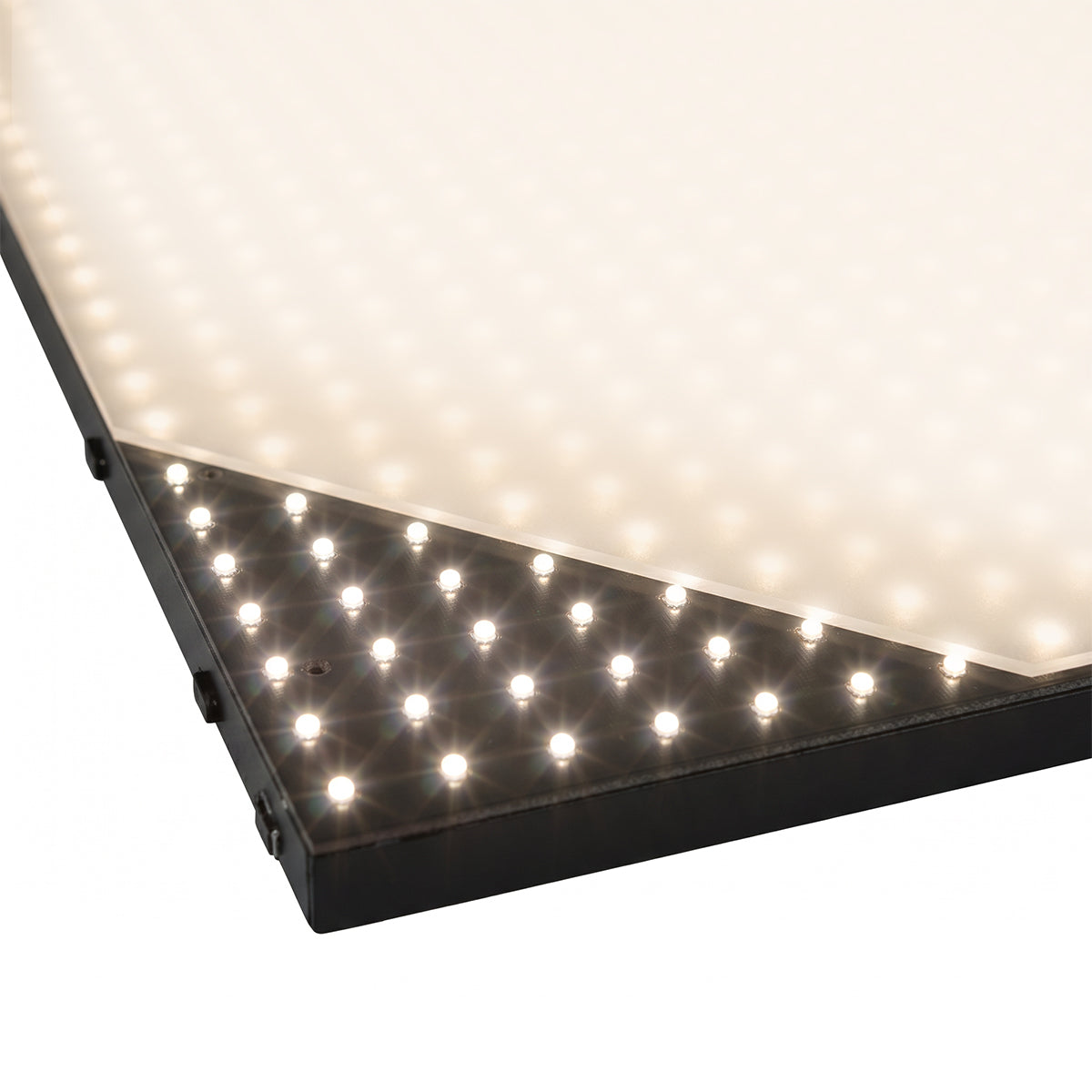

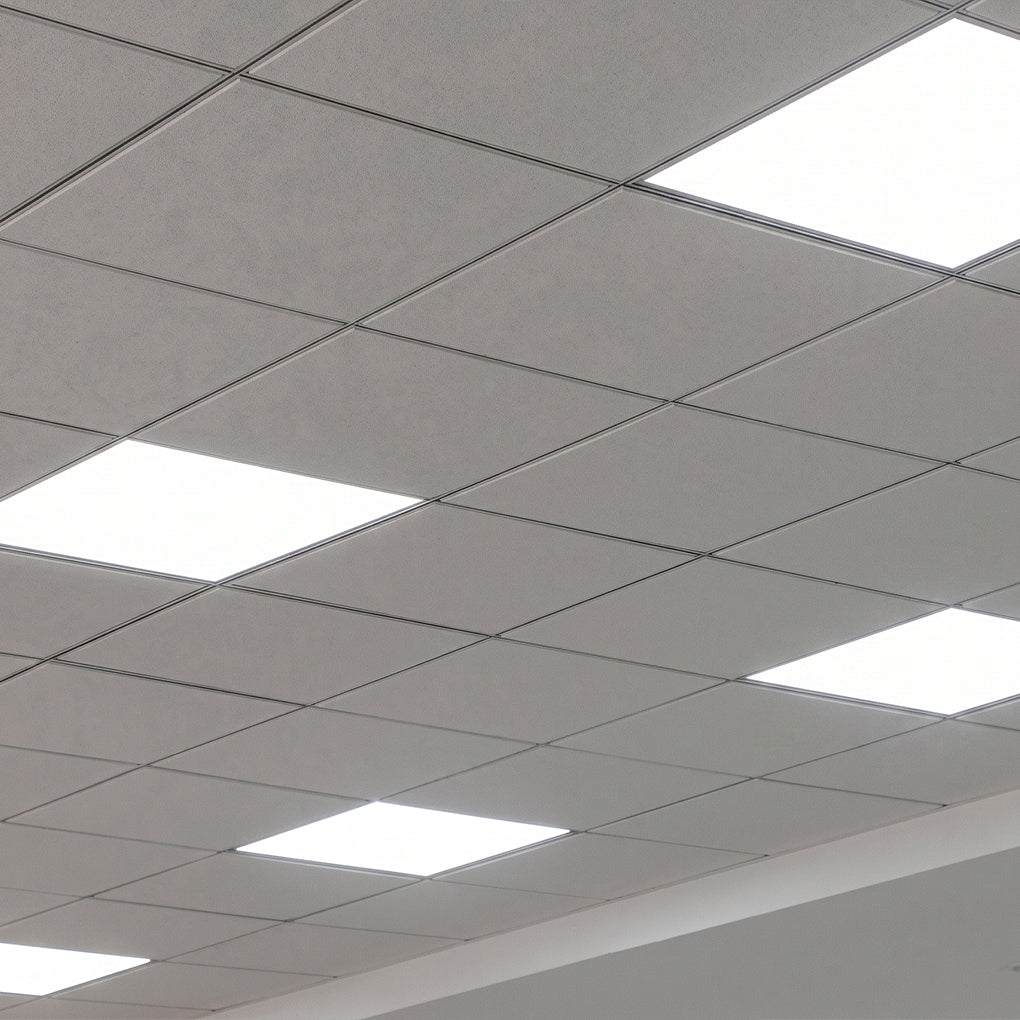

    Fusion Optix PC (polycarbonate) diffusion sheet offers excellent transmission rates combined with high LED hiding power make them the perfect solution for indoor downlighting. Our components set new benchmarks for performance in key metrics such as transmission efficiency for a given level of diffusion or hiding power, beating holographic, surface relief and bulk diffuser techniques.

    Fusion Optix diffusion sheet products provide the highest levels of efficiency with the greatest range of options in beam angles, haze, clarity and color performance. MicroTEK™ technology enables our sheet to enable superior light diffusion capabilities combined with extremely low light absorption to enable highly efficient light control in a variety of LED applications. Our patented diffusion materials are easy to use, efficient, reliable, and are compatible with nearly every Fusion Optix product.

    Ordering Details

    Order Code Sheet Material Code Gauge Diffusion T% / H% / C%
    FOC01-1101-0000 48" x 96" PC8080-2000A-9008 2.0 mm 80° x 80° 70 / 100 / 2.1
    FOC01-1102-0000 48" x 48" PC8080-2000A-9008 2.0 mm 80° x 80° 70 / 100 / 2.1
    FOC01-1103-0000 24" x 96" PC8080-2000A-9008 2.0 mm 80° x 80° 70 / 100 / 2.1
    FOC01-1104-0000 24" x 48" PC8080-2000A-9008 2.0 mm 80° x 80° 70 / 100 / 2.1
    FOC01-1105-0000 24" x 24" PC8080-2000A-9008 2.0 mm 80° x 80° 70 / 100 / 2.1
    FOC01-1106-0000 12" x 48" PC8080-2000A-9008 2.0 mm 80° x 80° 72 / 100 / 2.3
    FOC01-1107-0000 12" x 24" PC8080-2000A-9008 2.0 mm 80° x 80° 72 / 100 / 2.3
    FOC01-1108-0000 12" x 12" PC8080-2000A-9008 2.0 mm 80° x 80° 72 / 100 / 2.3

    Operating Temperatures = -30C to 100C | ROHS Compliant
