Patterned Light Guides

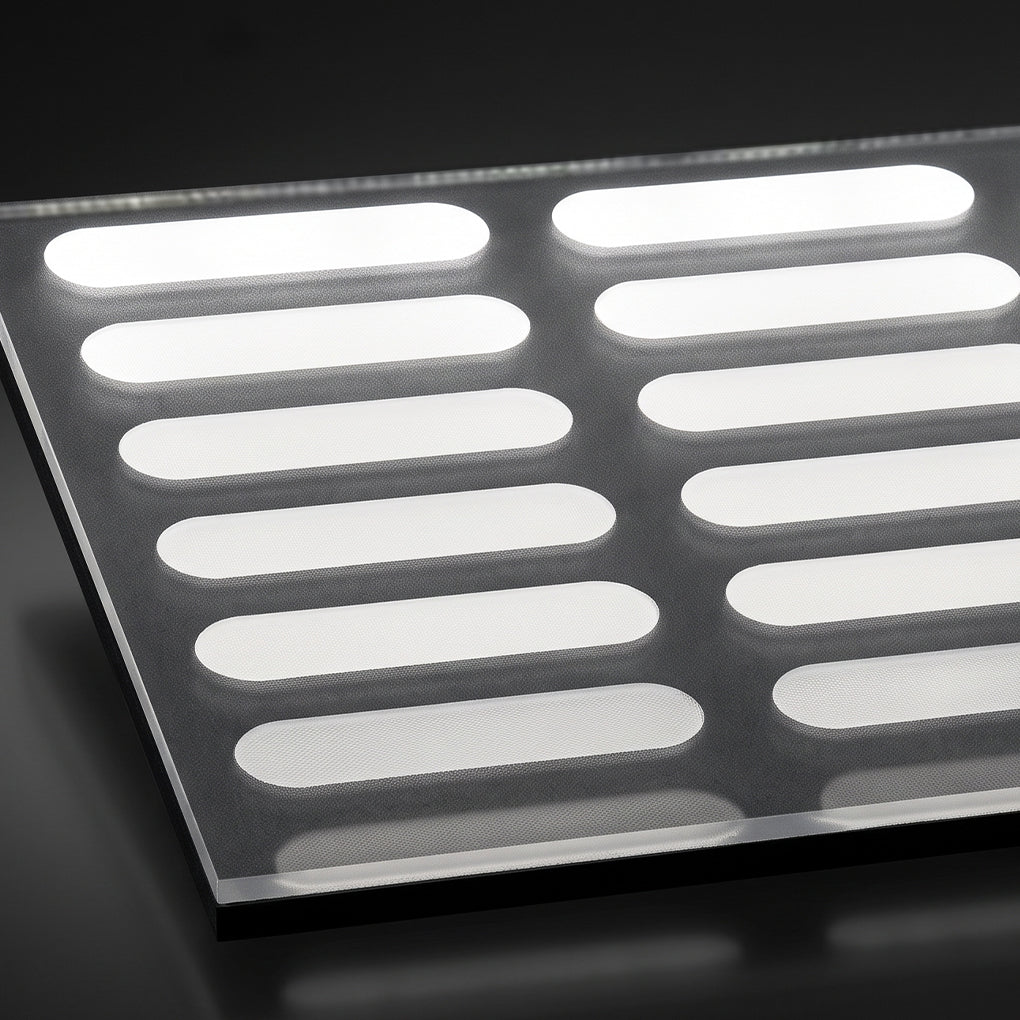

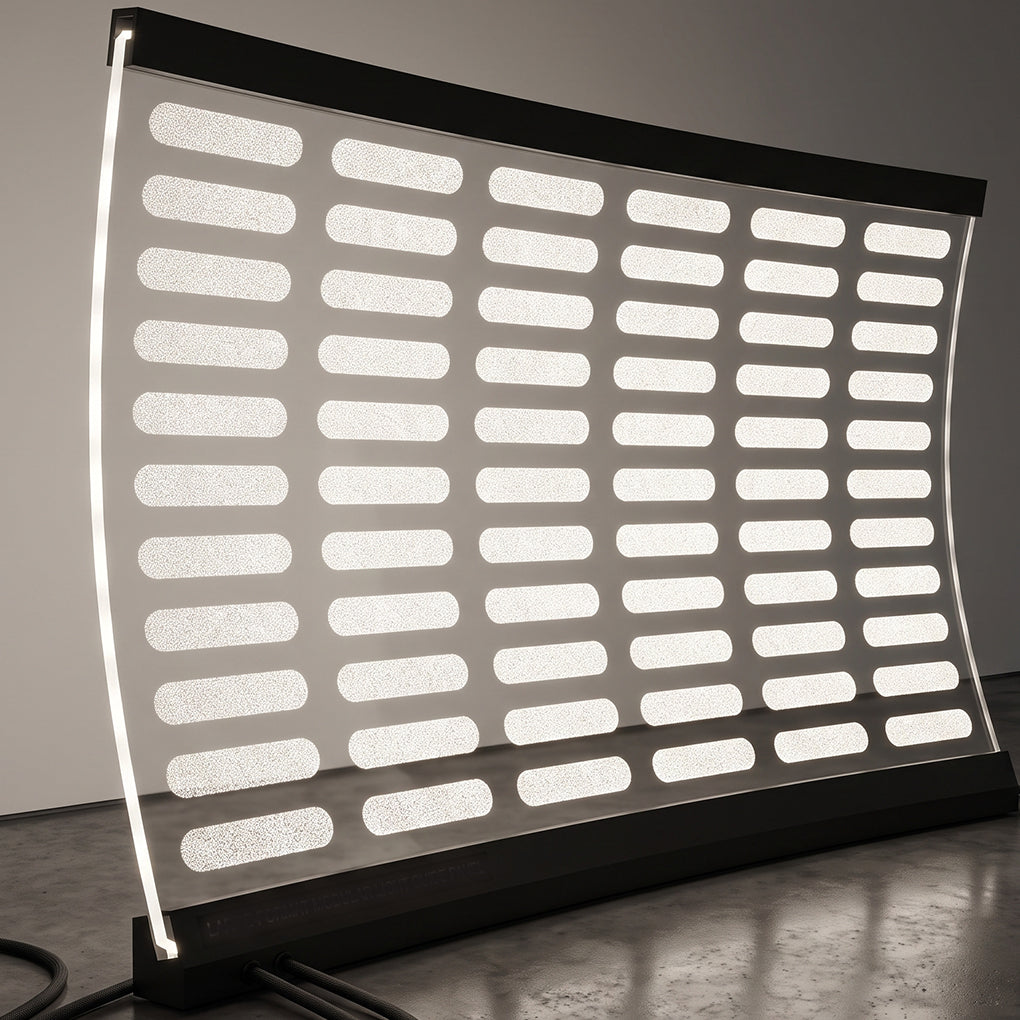

Fusion Optix Patterned Light Guides utilize advanced, customizable light-extraction technology to print or coat virtually any geometric or artistic pattern onto an optical substrate.

By taking their patented diffusion technology and applying it in specific, computer-generated layouts, these light guides allow for ultimate design freedom without the need for expensive upfront tooling costs. They are highly optimized for edge-lit applications where visual appearance and distinct light distribution are critical.

Key Features & Benefits

• Design Flexibility & No Upfront Tooling Costs: Manufacturers can transition directly from computer layouts to fully functional prototypes. The ability to apply custom patterns makes them ideal for unique geometric shapes and bespoke fixtures.
• Excellent Color Mixing & Uniformity: The patterned micro-structures provide efficient light extraction, ensuring excellent color mixing and perfectly uniform luminance across the surface while completely eliminating LED hot-spotting.
• Ultra-Thin Form Factors: With efficiencies reaching up to 85%, these guides enable ultra-thin fixture profiles that fit seamlessly into modern, minimalist design aesthetics.
• Versatile Applications: Because the extraction pattern can be highly customized, these guides are widely used in digital signage, decorative retail displays, branding, and distinct architectural lighting installations (such as wall-washing or custom sconces).
