Mud-in Channel - ALC1157

The Fusion Optix ALC-1157 Mud-in Channel is a specialized architectural mounting system designed for high-end, "invisible" LED installations.

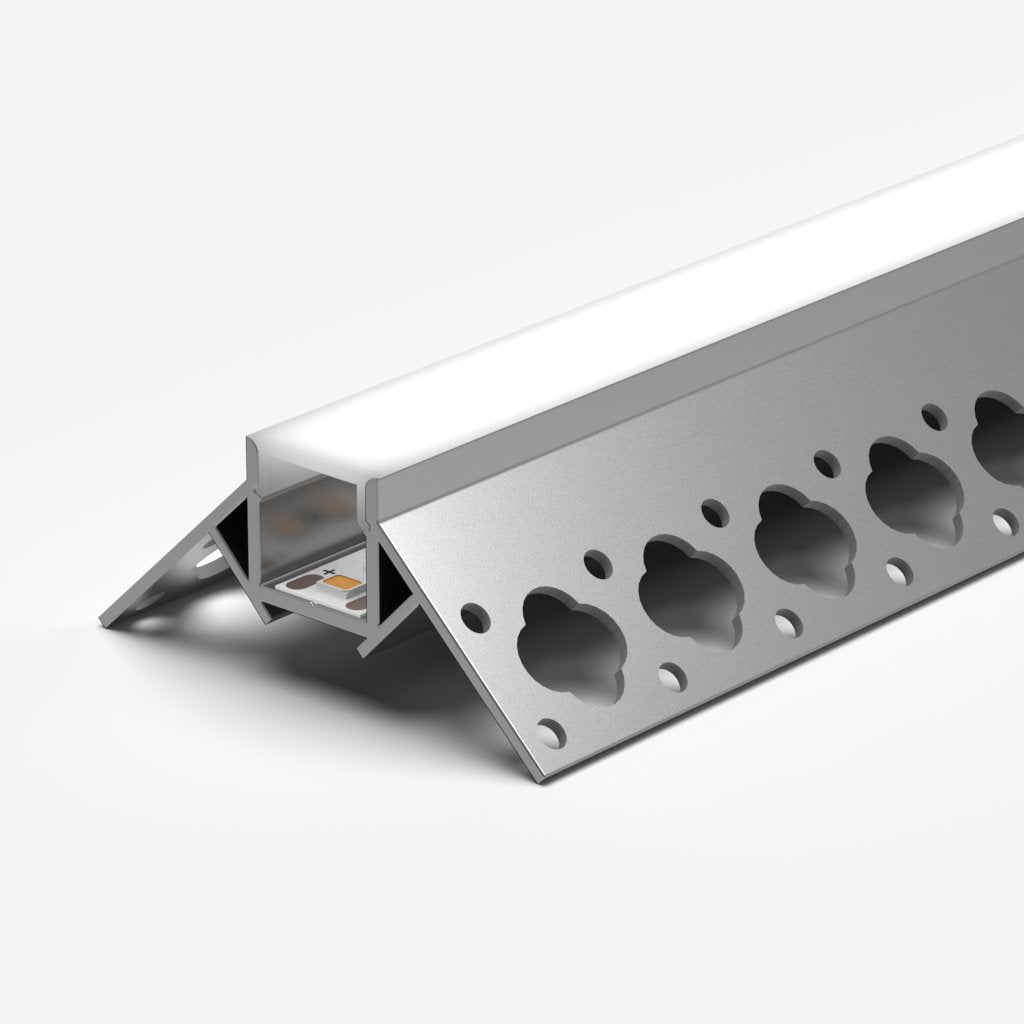

A compact, 90° angled aluminum channel designed for clean, directional linear lighting. This profile is engineered to integrate seamlessly with Fusion Optix FlexTape™ up 0.5" (12mm) wide, delivering consistent performance with enhanced optical control when paired with optics by Fusion Optix lenses.

This product is ideal for new construction or major renovations. Because it requires cutting into drywall and applying joint compound (mudding), it is not a "simple DIY" project for an existing finished wall unless you are prepared for significant drywall repair and repainting.

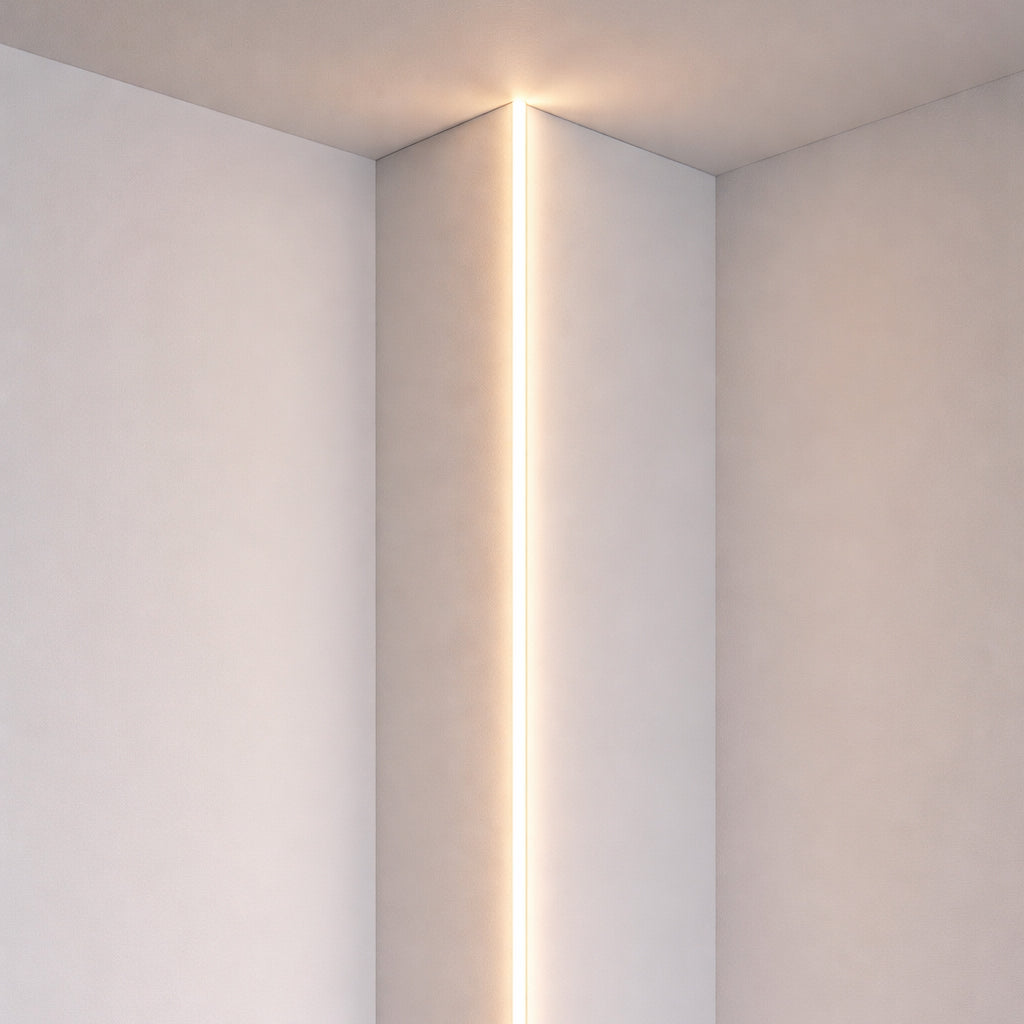

It is ideal for minimalist, modern interiors where the goal is to see the light, but not the light fixture itself. Because "mud-in" channels are designed to be plastered directly into the drywall, they create a perfectly flush, trimless finish.

Features

• Optimized for FlexTape™
  Fits FlexTape and LED strips up to 12mm (0.5") wide for reliable alignment and performance
• Angled Light Distribution
  90° profile directs light precisely for accent applications
• Fusion Optix Compatible
  Supports advanced lensing options for beam shaping, glare control, and improved visual uniformity
• Thermal Management
  Aluminum construction acts as a heat sink to extend LED life and maintain performance
• Flexible Length Options
  Available in standard lengths up to 98 inches with custom cut capability
• Finish Options
  Supplied in mill finish aluminum or available with white, black or custom powder-coated finishes
• Clean Installation
  Sits flush with 5/8" (or 1/2") drywall, making it look integrated into the architecture

Applications

• Undercabinet
• Cove and perimeter
• Architectural lighting
• Retail/POP lighting
