MicroTEK Enhanced Profile Diffusers

1 2

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Part#  7244

$0.00 USD
$0.00 USD
Sale Sold out
The MicroTEK Enhanced Profile Diffusers is made-to-order (2-4 week lead time). Volume discounts reflected in cart; contact Sales for large or custom orders.

QUICK SPECS

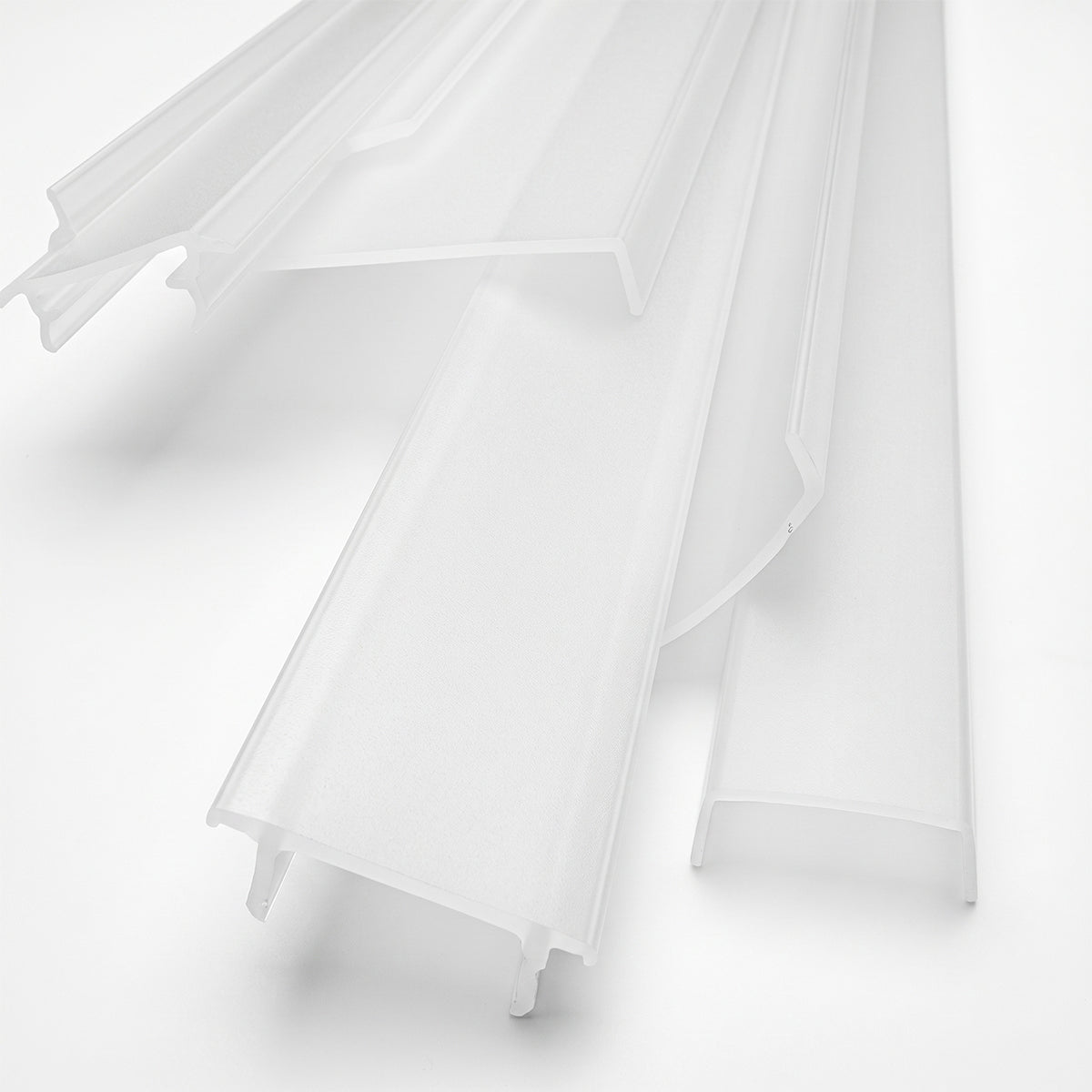

    MicroTEK™ Enhanced Profile Diffusers enable high-performance energy-efficient diffuse light in linear LED lighting applications. Particularly well suited to continuous run applications which demand no seams of several tens of meters.

    Fusion Optix has invested heavily in a broad range of in-house manufacturing capabilities for the production of plastic (PMMA, PC, COC, SAN) optical components for use in linear LED lighting fixtures. We cover anything from linear profile, sheet and film extrusion through to optical coatings and laser engraving and cutting. Equipment is in-house at our Woburn MA facility and in most cases enclosed inside Class10,000 cleanrooms.

    Features & Benefits

    • High uniformity
    • Excellent LED hiding power
    • High optical efficiency (>90%)
    • Very low light loss and absorption (<5%)
    • Customized optical properties (angles, haze, clarity)

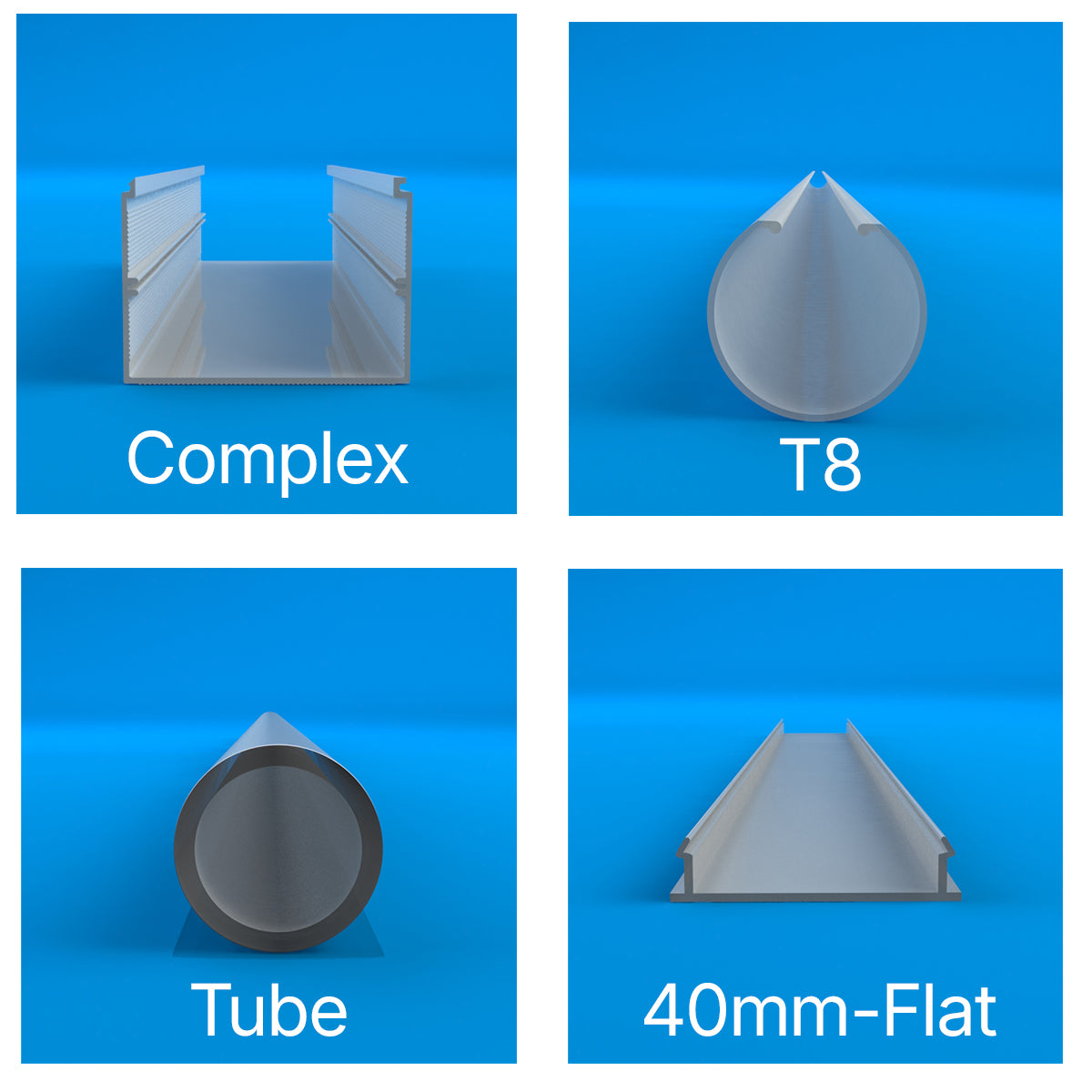

    • Continuous run or profiles with snap-in features
    • Choice of surface finishes
    • Choice of optical materials

    Design Guide

    Thickness Materials FWHM T(%) H(%) C(%) LED Hiding Spread Effect
    1-2mm PMMA or PC 100 x 100 60 100 1.5 Maximum Lambertian
    1-2mm PMMA or PC 90 x 90 70 100 1.8 Very Strong Very Wide
    1-2mm PMMA or PC 80 x 80 75 100 2.0 Very Strong Very Wide
    1-2mm PMMA or PC 70 x 70 80 100 3.0 Strong Wide
    1-2mm PMMA or PC 60 x 60 84 100 4.0 Strong Wide
    1-2mm PMMA or PC 50 x 50 88 100 6.0 Strong Wide
    1-2mm PMMA or PC 40 x 40 94 100 8.0 Medium Medium
    1-2mm PMMA or PC 30 x 30 95 100 12 Medium Medium
    1-2mm PMMA or PC 20 x 20 95 95 15 Low Narrow
    1-2mm PMMA or PC 10 x 10 95 75 25 Low Narrow
    1-2mm PMMA or PC 10 x 10 95 55 45 Low Narrow
