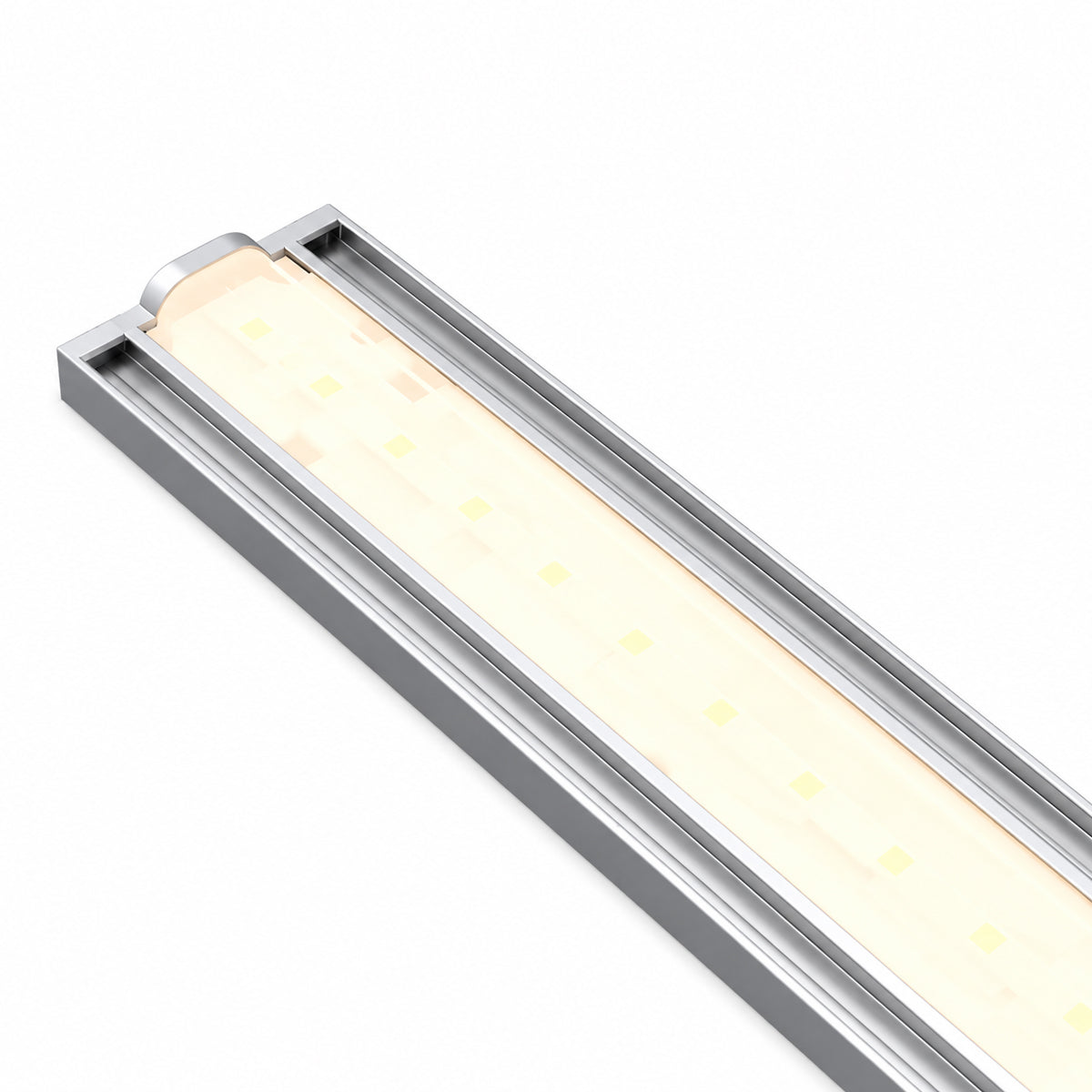

Linear Batwing Lens

1 5

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Part#  3114-1

$0.00 USD
$0.00 USD
Sale Sold out
The Linear Batwing Lens is made-to-order (2-4 week lead time). Volume discounts reflected in cart; contact Sales for large or custom orders.

QUICK SPECS

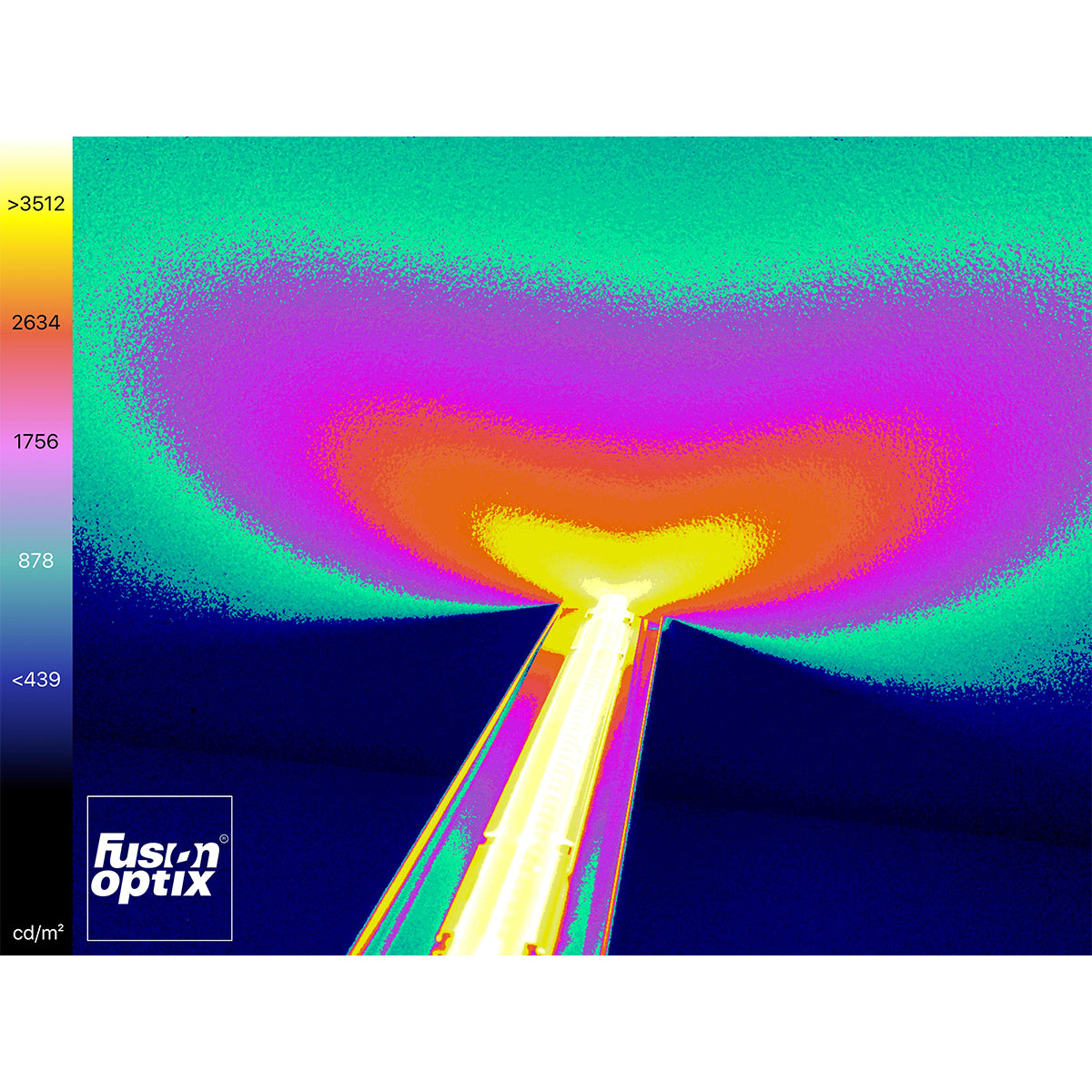

    Finally, a solution for high-quality indirect illumination that actually works! Designed to match the theoretically ideal cosine curve over a wide angular range. Provides uniform and consistent wide-angle light without problematic and unwanted striations or color over angle artifacts.

    MicroTEK™ technology and precision extrusion processes combine to provide high efficiency, uniform wide angle light distributions. Designed to be placed directly onto Fusion Optix range of SpekLED™ LED boards to provide high efficiency light in a range of choices including 2700K to 4000K CCT, 80, 90 and >90 CRI and Circadian.

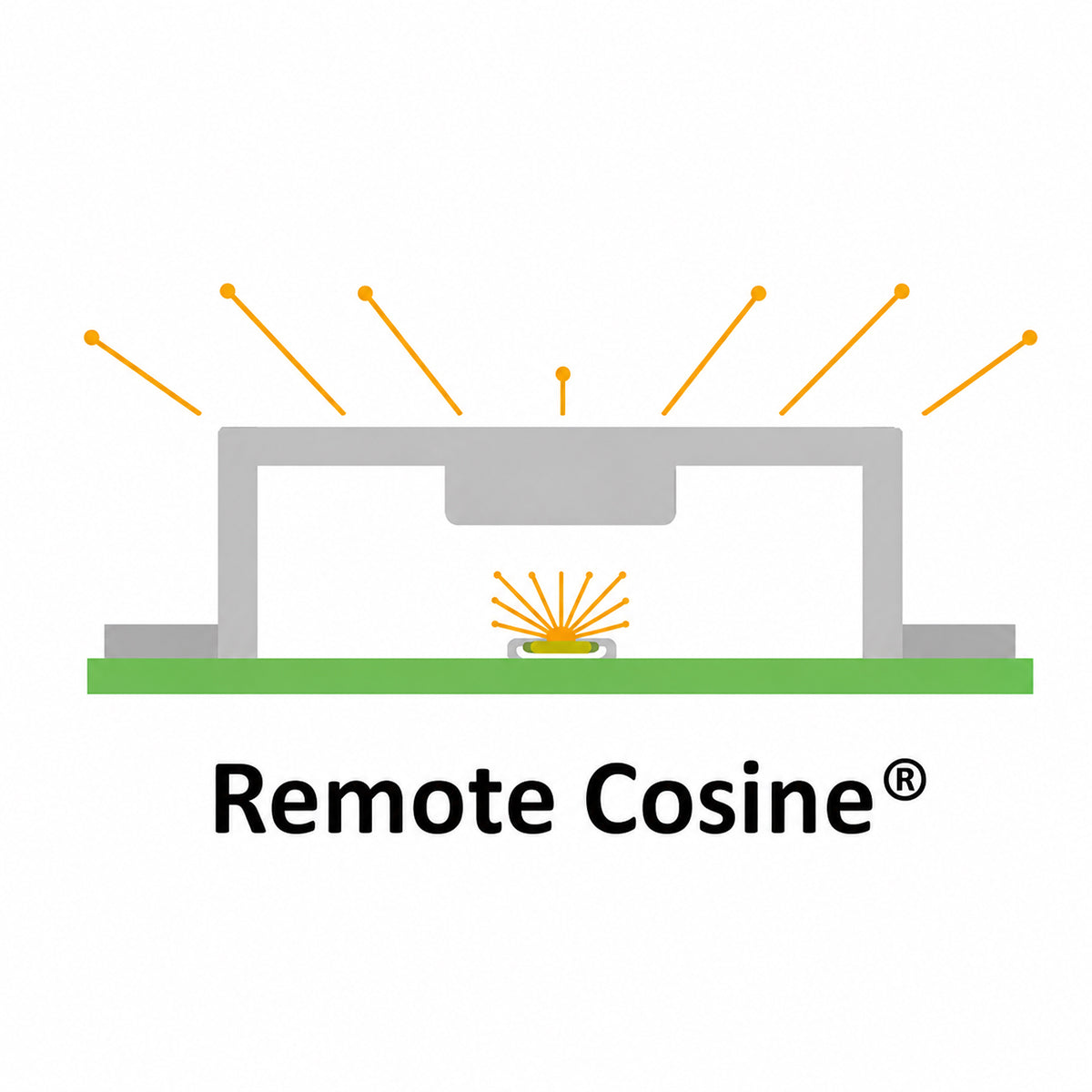

    Cosine™ optical technology and precision extrusion processes combine to provide high efficiency, uniform wide angle light distributions. Designed to be placed directly onto Fusion Optix range of SpekLED™ LED boards to provide high efficiency light in a range of choices including 2700K to 4000K CCT, 80, 90 and >90 CRI and Circadian.

    Further Information

    • Designed specifically for indirect linear LED lighting products.

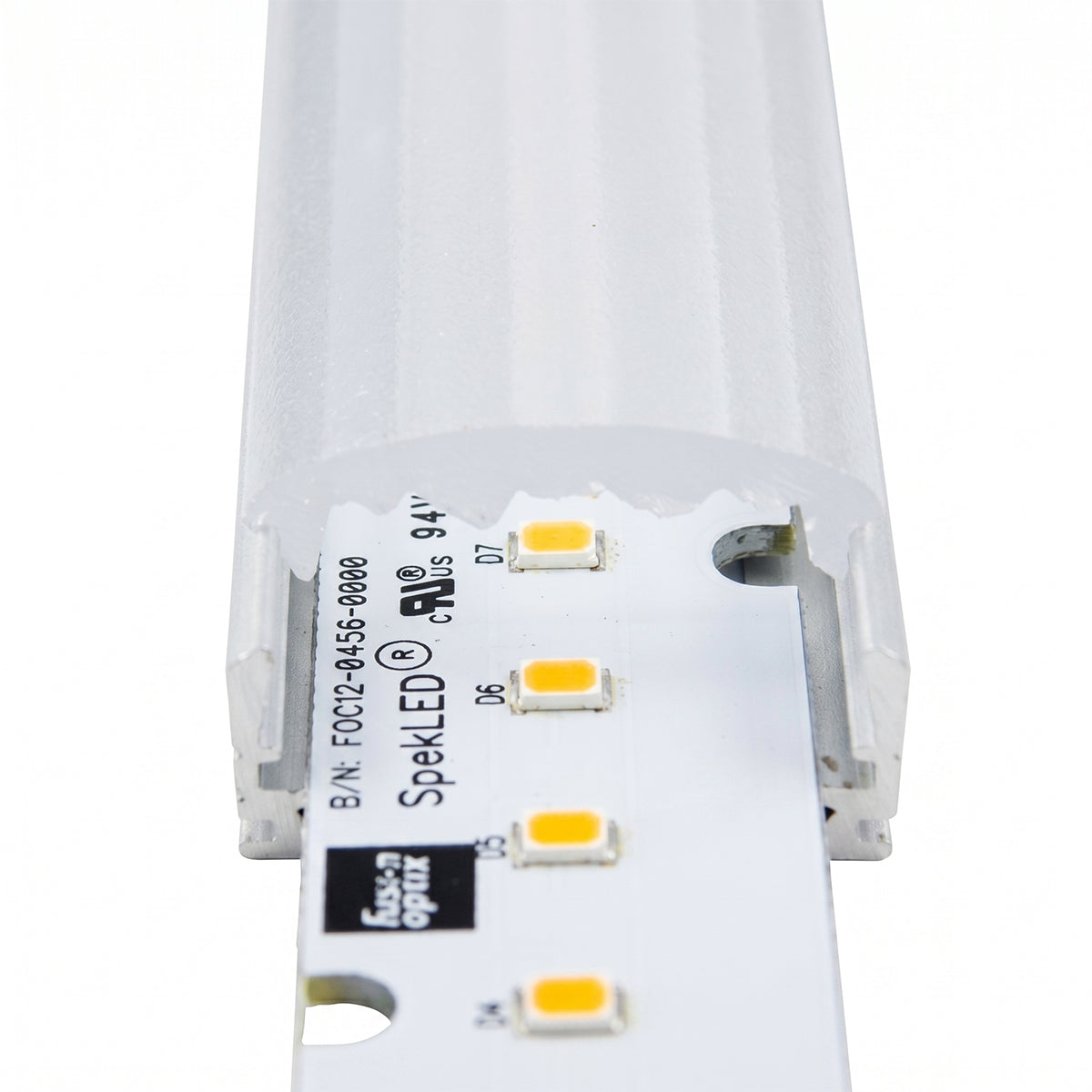

    • Easy to use, fits neatly on SpekLED™ boards.

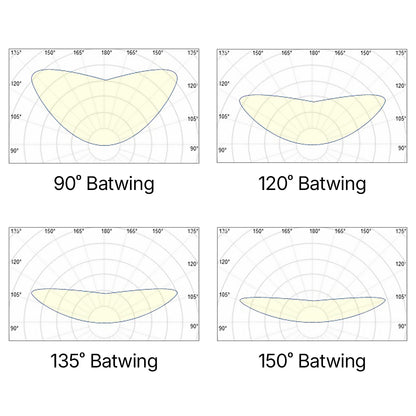

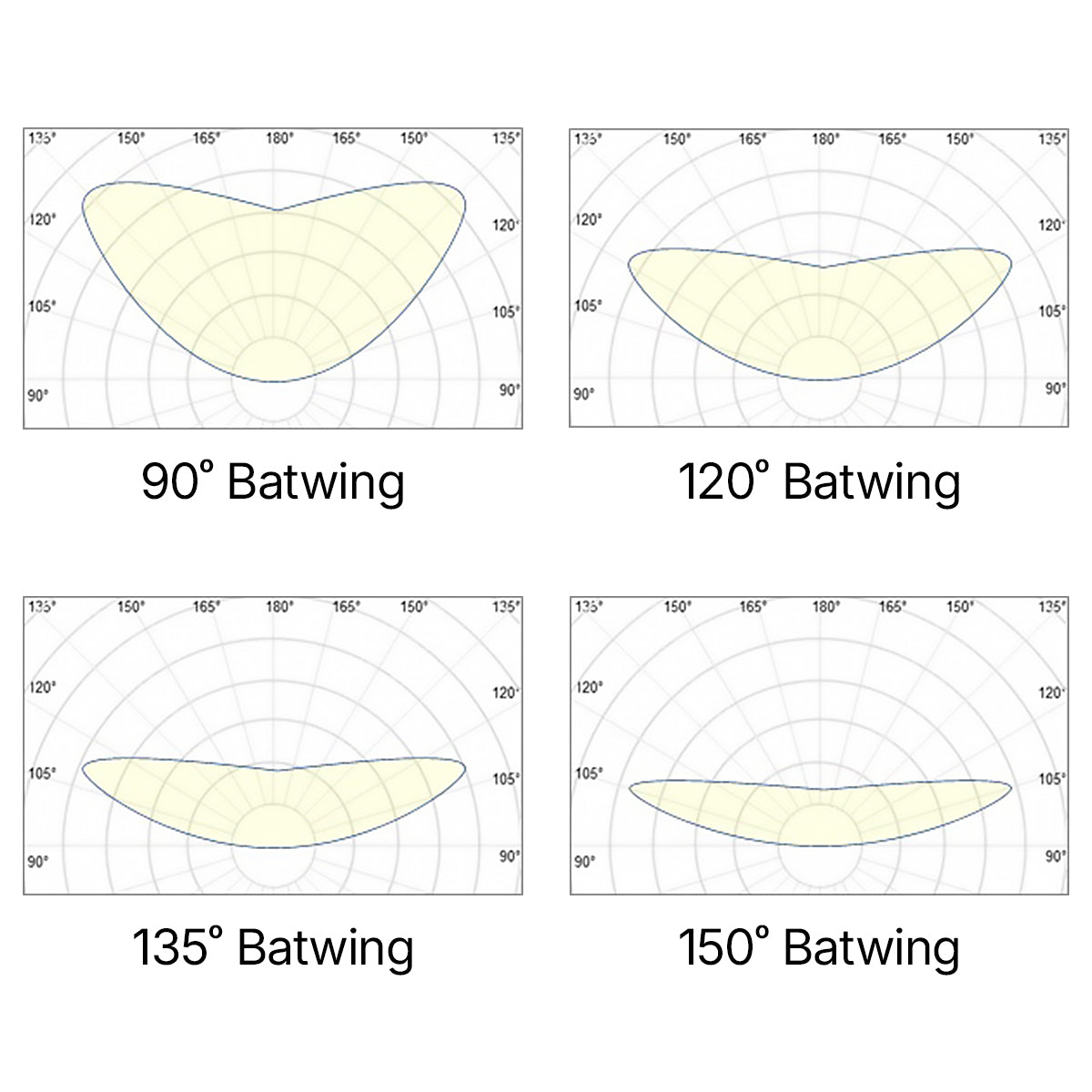

    • Batwing angles of 90, 120, 135 or 150 degrees (Super Wide) options.
    • Optical efficiencies of up to 93%
    • Available in PMMA, High Temp PMMA, PC, and Silicone (In Development)
    • Enhanced color reliability and lifetime performance via ColorSure™ technology.
    • Booster films increase efficiency by 5-10%. Standard lengths up to 10ft.
    • Also available as continuous run, snap-in or slide-in FlatLENS™.
    • Significant high volume price breaks.
    • Manufacturing based 100% in USA.
    • Full service engineering support available.
