Light Guides for LCD Backlighting

1 3

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Part#  3403

$0.00 USD
$0.00 USD
Sale Sold out
The Light Guides for LCD Backlighting is made-to-order (2-4 week lead time). Volume discounts reflected in cart; contact Sales for large or custom orders.

QUICK SPECS

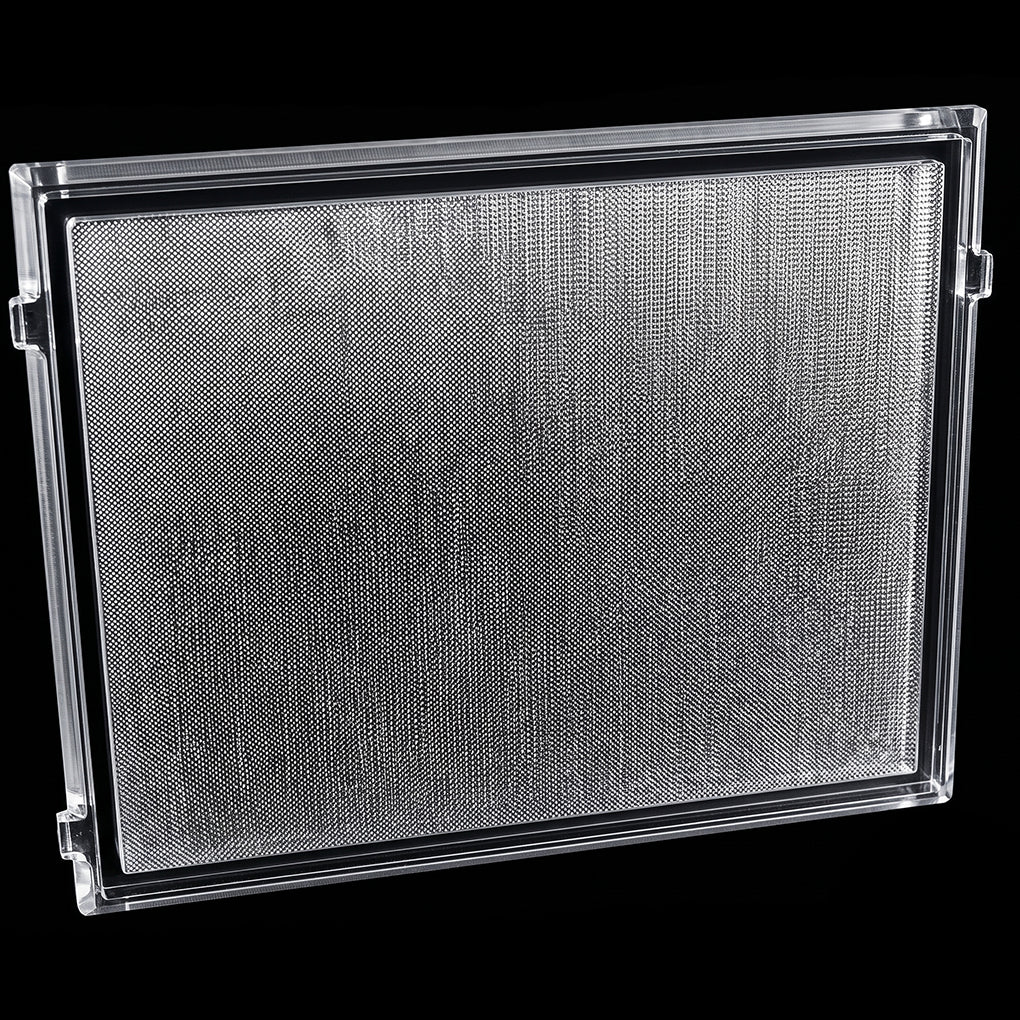

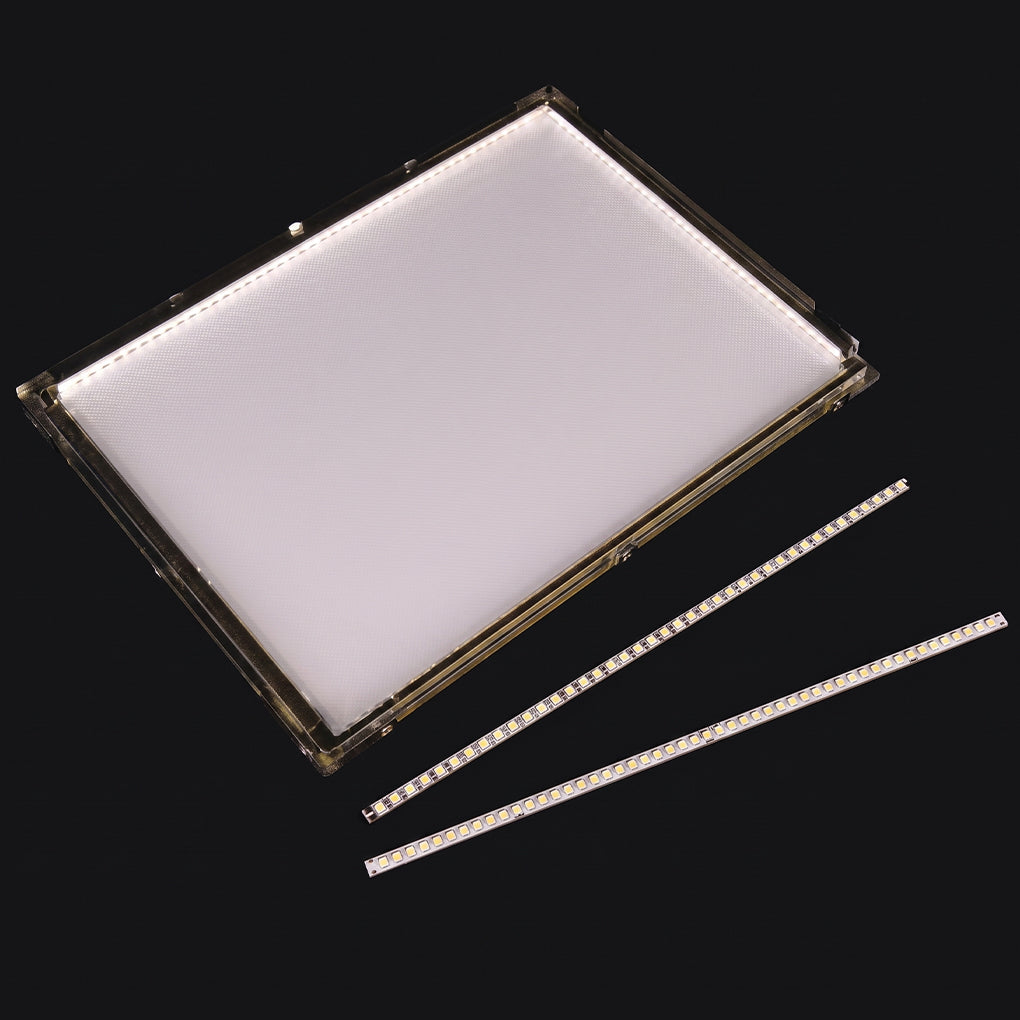

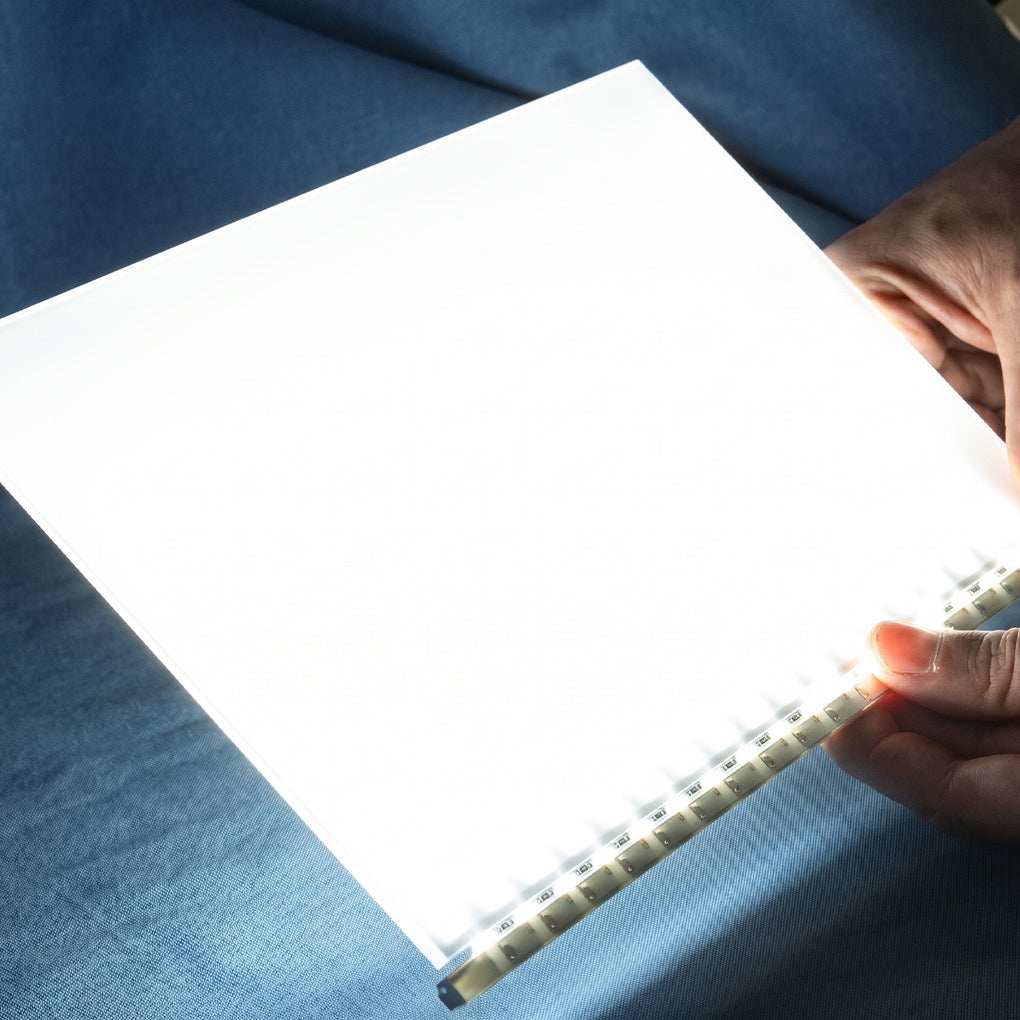

    Fusion Optix PMMA light guides make LED edge-lighting a reality for a variety of LCD panel sizes and applications. Unique light extraction technology provides an efficient mechanism for extracting and smoothing out light, solving “hot-spotting” issues.

    Fusion Optix light guides make it possible to reduce overall thickness and LED count, resulting in slimmer, more cost-effective LED-based display systems.

    Applications

    Handhelds and mobile phones
    Laptops and tablets
    Monitors
    Digital signage
    Point of purchase displays
    Instrumentation

    Fusion Optix MicroTEK light guides for LCD backlighting offer some of the highest levels of efficiency and uniformity. All of our light guides will increase luminance uniformity to some degree; use diffusion films to eliminate LED “hot-spotting” and dark regions in LCD backlights without affecting distribution.

    Part Number LCD Diameter (in) Dimensions(in) Thickness(mm) Sides
    FOC07-0003-0000 10.4 8.94 x 6.46 4 1
    FOC07-0015-0000 7.24 3.43 x 6.37 2.26 1
    FOC07-0019-0000 10.4 7.01 x 8.68 5.4 1
    FOC07-0019-0001 10.4 7.01 x 8.68 5.4 2
    FOC07-0020-0000 32 16.21 x 28.63 5.4 2
    FOC07-0026-0000 17 13.60 x 11.15 4 1
    FOC07-0032-0000 9.8 8.50 x 6.40 5.4 1
    FOC07-0033-0000 20.1 17.70 x 12.30 5.6 2
    FOC07-0035-0000 15 8.38 x 13.18 4.5 1
    FOC07-0037-0000 6.14 4.38 x 4.30 5.6 1
    FOC07-0047-0000 17 9.29 x 14.46 5.6 2
    FOC07-0055-0000 8.4 6.98 x 5.46 6 2
    FOC07-0061-0000 22 19.13 x 11.83 5.6 2
    FOC07-0067-0000 22 18.90 x 11.95 4.5 2
    FOC07-0068-0000 10.4 8.70 x 6.90 6 1
    FOC07-0069-0000 10.4 8.70 x 6.30 5 1
    FOC07-0070-0000 21.81 19.00 x 10.70 6 2
    FOC07-0071-0000 22.5 22.50 x 22.50 4.5 2
    FOC07-0075-0000 24 21.16 x 12.00 3 2
    FOC07-0080-0000 6.56 5.20 x 4.00 2 1
    FOC07-0084-0000 7.42 6.40 x 3.75 3 1
    FOC07-0093-0000 10.4 8.55 x 6.59 4.5 2
    FOC07-0093-0001 10.4 8.55 x 6.59 4.5 1
    FOC07-0094-0001 10.4 9.84x 7.57 4.5 2
    FOC07-0094-0002 12.1 9.96 x 7.26 4.5 2
    FOC07-0094-0003 12.1 9.69 x 7.26 4.5 1
    FOC07-0176-0000 10.4 8.52 x 6.21 4.5 2
    FOC07-0176-0001 10.4 8.52 x 6.21 6 2
    FOC07-0177-0000 15.1 12.27 x 9.05 4.5 2
    FOC07-0177-0002 15.1 12.27 x 9.05 6 2
    FOC07-0188-0000 10.632 6.44 x 8.73 6 2
    FOC07-0189-0000 15.333 9.24 x 12.63 6 2
    FOC07-0249-0000 10.666 8.49 x 6.44 6 2
