High Flux Linears

1 1

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Part#  730

$0.00 USD
$0.00 USD
Sale Sold out
The High Flux Linears is made-to-order (2-4 week lead time). Volume discounts reflected in cart; contact Sales for large or custom orders.

QUICK SPECS

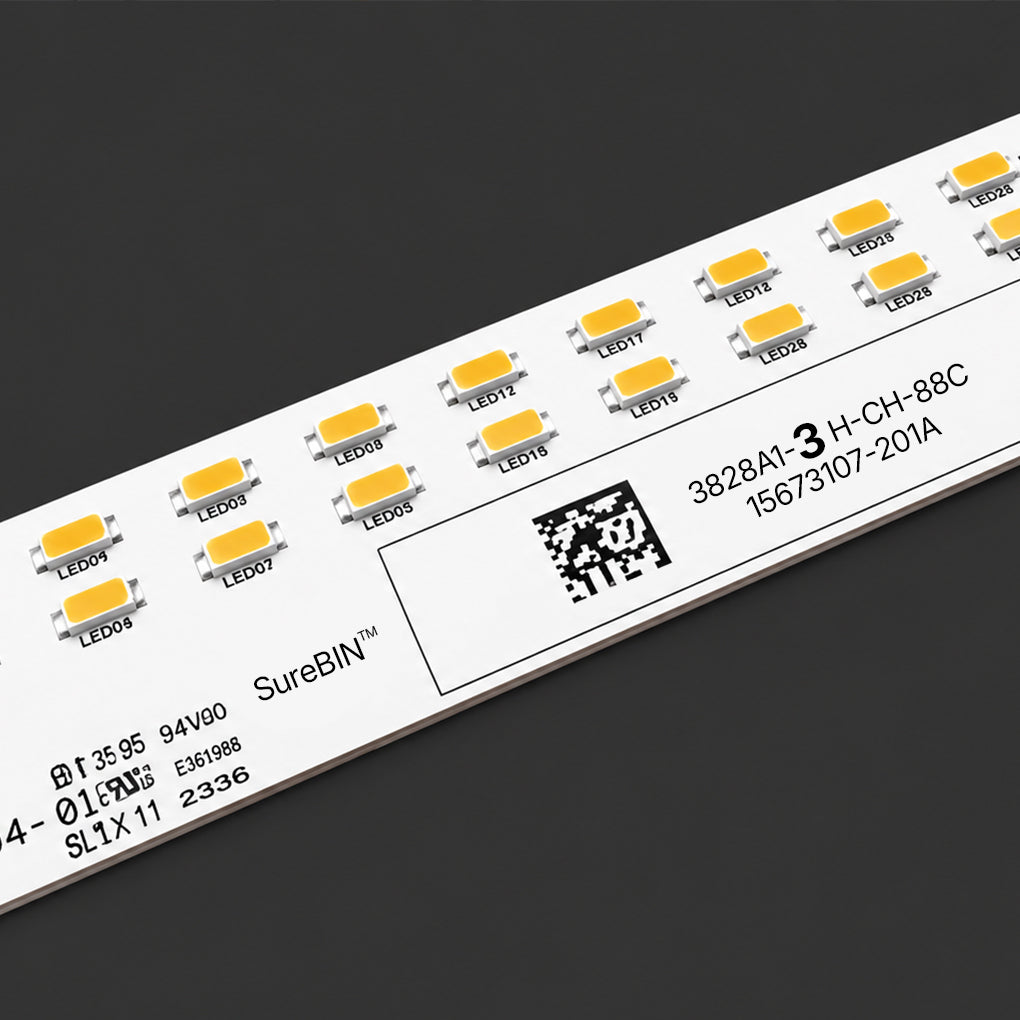

    Fusion Optix dual-row linear LED boards provide a low-cost, high-performance solution for troffer, pendant and edge lit LED luminaires.

    White Dual Row Low Voltage High Current

    Applications: 2×2, 2×4 and 1×4 recessed Troffers

    7.2-22.5 W Linear LED Flat Light Array 2700-5000K 2-Row 1900-2140 lm ≤80 CRI 280 x 40 mm

    • Form: Linear
    • Mfr Part#: FOM01-1002-XXXX
    • Packaging: TRAY
    • Board Dimensions: 280 x 40 mm
    • No of LEDs: 36
    • Nominal Flux*: 1200 – 1300 lm
    • CCT: 2700-5000 K
    • Voltage Range: 17.3-18.8
    • Current Range: 280-800

    280 Series Double Row High Voltage Low Current

    Applications: 2×2, 2×4 and 1×4 recessed Troffers

    7.2-22.5 W Linear LED Flat Light Array 2700-5000K 2-Row 1900-2140 lm ≤80 CRI 280 x 40 mm

    • Form: Linear
    • Mfr Part#: FOM01-1005-XXXX
    • Packaging: TRAY
    • Board Dimensions: 280 x 40 mm
    • No of LEDs: 36
    • Nominal Flux*: 1200 – 1300 lm
    • Flux-Typ: 1900-2140 lm
    • CCT: 2700-5000 K
    • Voltage Range: 34.5-37.6
    • Current Range: 140-400
