Corner Channel - ALC1001

Corner Channel - ALC1001

The Fusion Optix ALC-1001 Corner Channel is a specialized architectural mounting system designed for high-end, integrated linear lighting installations.

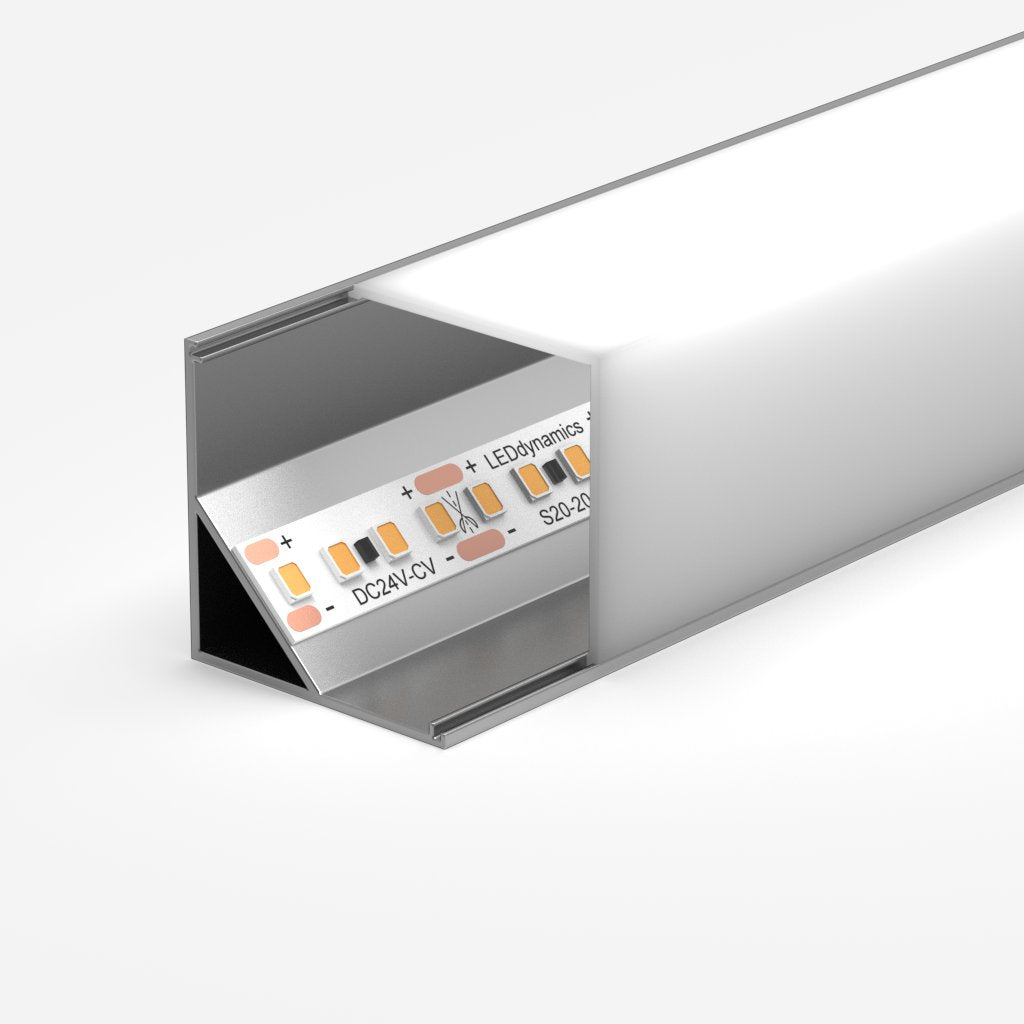

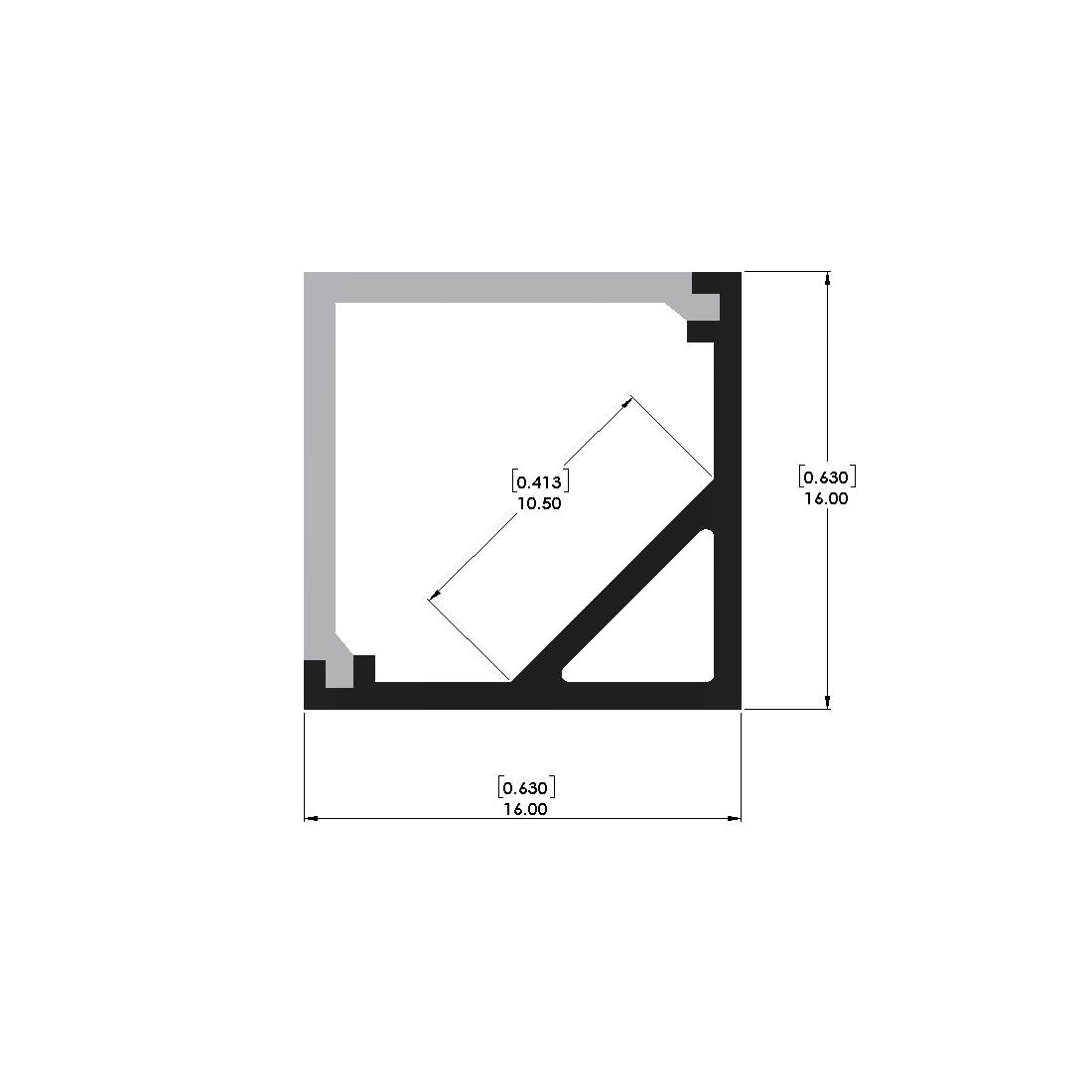

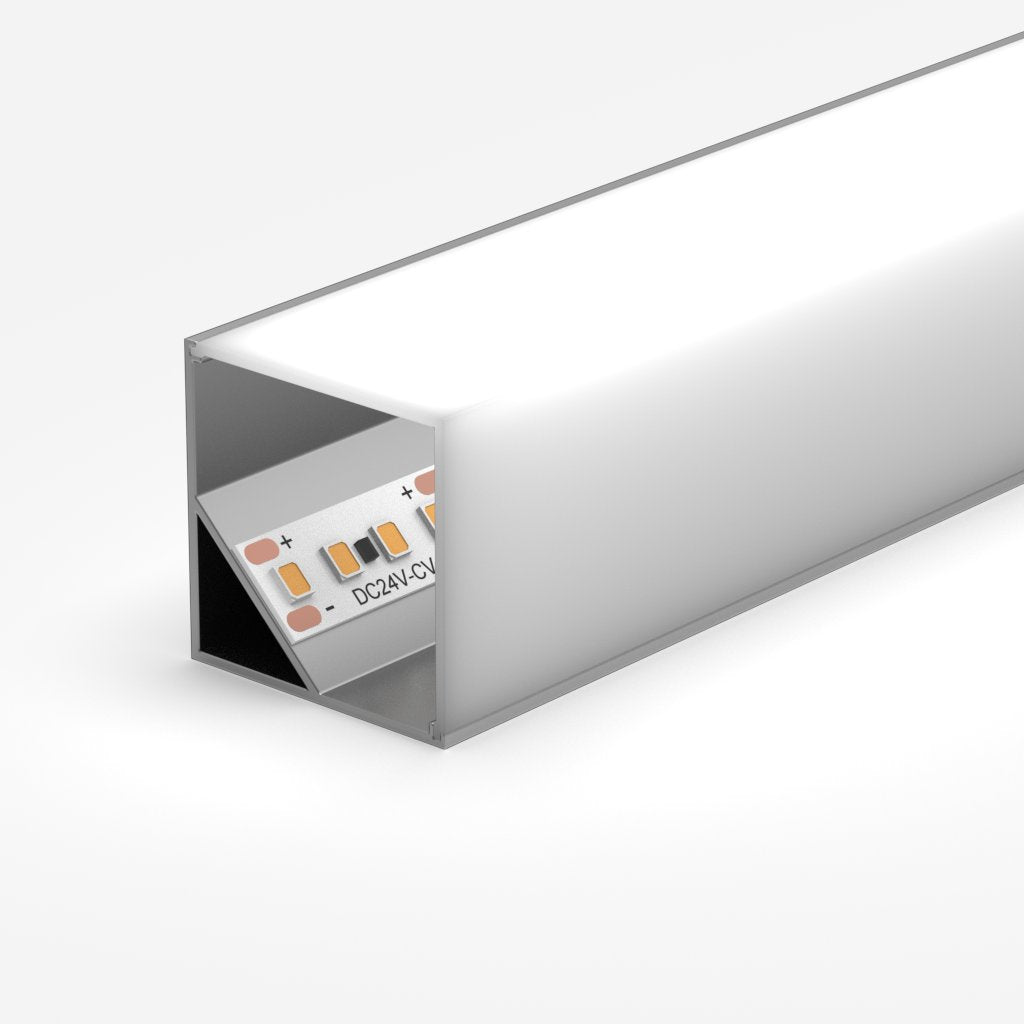

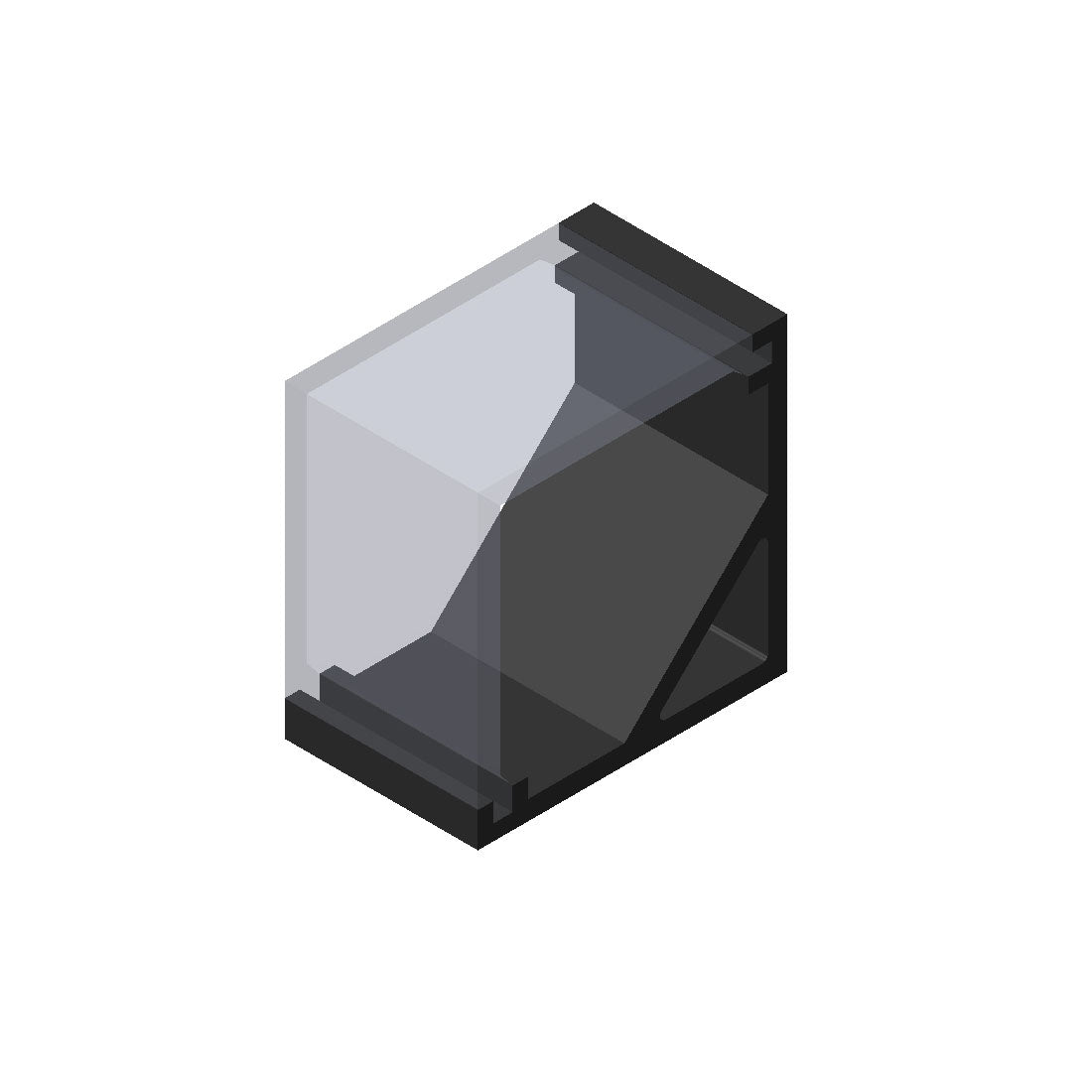

A compact, 45° angled aluminum channel designed for clean, directional linear lighting. This profile is engineered to integrate seamlessly with Fusion Optix FlexTape™ up to 0.5" (12mm) wide, delivering consistent performance with enhanced optical control when paired with optics by Fusion Optix lenses.

This product is ideal for perimeter accenting or under-cabinet surfaces. Because it mounts tightly into 90-degree corners, it offers an efficient and clean installation method to direct light downward and outward at a balanced angle.

It is ideal for minimalist, modern interiors where the goal is to see the light, but not the light fixture itself. By fitting perfectly into architectural intersections, it creates a clean, trimless aesthetic that eliminates harsh glare.

Features

• Optimized for FlexTape™
  Fits FlexTape and LED strips up to 12mm (0.5") wide for reliable alignment and performance
• Angled Light Distribution
  45° profile directs light precisely forward and downward for optimal task or accent applications
• Fusion Optix Compatible
  Supports advanced lensing options for beam shaping, glare control, and improved visual uniformity
• Thermal Management
  Aluminum construction acts as a heat sink to extend LED life and maintain performance
• Flexible Length Options
  Available in standard lengths up to 98 inches with custom cut capability
• Finish Options
  Supplied in mill finish aluminum or available with white, black or custom powder-coated finishes
• Clean Installation
  Mounts flush into 90° corners, keeping the profile neatly concealed while maximizing light output
