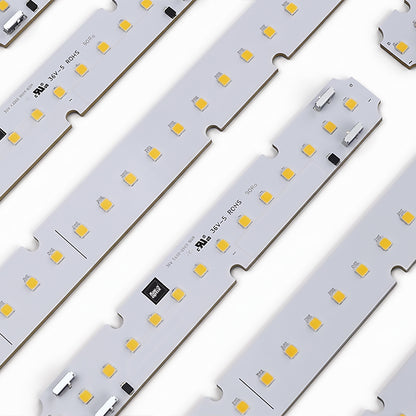

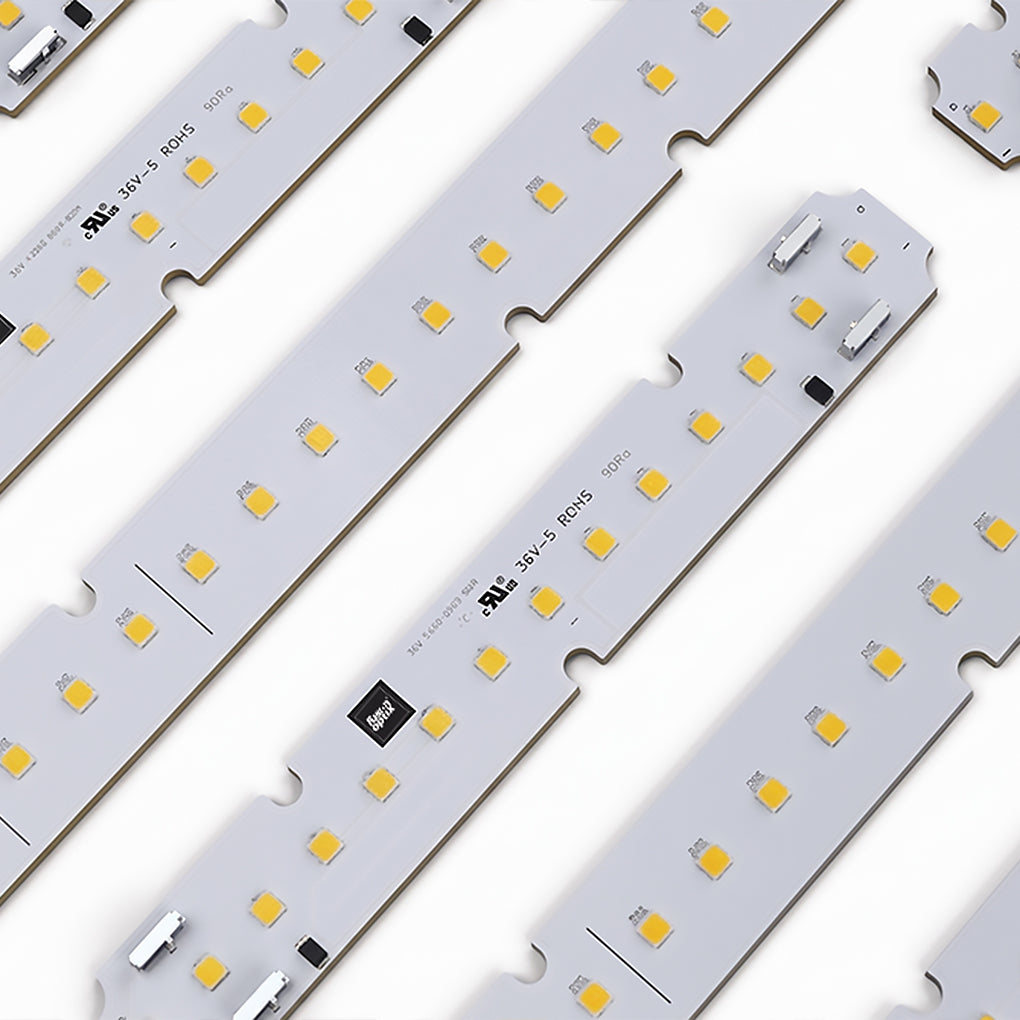

0.8″ (20mm) Constant Current Linears

1 5

View our BAA/BABA Compliance page to learn about about how we can support making your project or product compliant.

Part#  1896

$0.00 USD
$0.00 USD
Sale Sold out
The 0.8″ (20mm) Constant Current Linears is made-to-order (2-4 week lead time). Volume discounts reflected in cart; contact Sales for large or custom orders.

QUICK SPECS

    The 0.8″ (20mm) Constant Current Linear module can achieve 197 lumen per watt in efficacy for better energy saving and targeting DLC Premium in lighting fixtures. It allows a lower power consumption, the ease in thermal management, and longer LED and system lifetime. The options of 90 CRI, high R9, and 2.5 SDCM color consistency are ideal for lighting applications with higher requirements such as retail, hospitality, and healthcare.

    Key features

    • Leading LED module efficacy of up to 197 lm/W
    • High color rendering (CRI >80 and >90)
    • Excellent color consistency of 3 SDCM
    • Choice of color temperatures (2700K, 3000K, 3500K, and 4000K)
    • Various module lengths from 5.5” up to 44”
    • Push-in connectors enabling automated wiring
    • Long life-time: >50,000 hours
    • Wide temperature (Tc) range from -40 °C up to +90 °C
    • UL 8750 recognized
    • Five year standard warranty

    Benefits

    • High performance for DLC Premium
    • Consistent color quality best suited for lighting designers and specifiers
    • Tier 1 LED for long life expectancy
    • Made in the USA

    Intended Markets

    • Indoor Lighting
    • Office, Retail, Living space
    • Area Panels, Troffer, and Linear Pendants
    • Direct and indirect lighting
    • Facade and Channel lighting

    0.8" (20mm) Premium Linears

    The Premium module can achieve 197 lumen per watt in efficacy for better energy saving and targeting DLC Premium in lighting fixtures. It allows a lower power consumption, the ease in thermal management, and longer LED and system lifetime. The options of 90 CRI, high R9, and 2.5 SDCM color consistency are ideal for lighting applications with higher requirements such as retail, hospitality, and healthcare.

    Performance Linear

    Module P/N Watts / Milliamps Flux (lm) Efficacy (LPW) Length (in) # of LEDs
    FOM01-0459 2.8 / 73 550 197 5.5 14
    FOM01-0460 5.6 / 145 1100 197 11 28
    FOM01-0461 11.2 / 290 2200 197 22 56
    FOM01-0456 11.2 / 290 2200 197 23.7 56
    FOM01-0462 22.3 / 580 4400 197 44 112

    *Width is 20mm

    0.8" (20mm) Economy Linears

    The Economy linear LED module range provides an alternate platform that can deliver the standard lighting performance with affordable pricing. Both Premium and Economy portfolios cover a range of module lengths from 5.5 inches to 44 inches with 20mm width that can be easily paired and designed-in for recessed, linear, troffer, panel, pendant, and suspended LED luminaires.

    Performance Linear

    Module P/N Watts / Milliamps Flux (lm) Efficacy (LPW) Length (in) # of LEDs
    FOM01-0459 2.8 / 73 550 197 5.5 14
    FOM01-0460 5.6 / 145 1100 197 11 28
    FOM01-0461 11.2 / 290 2200 197 22 56
    FOM01-0456 11.2 / 290 2200 197 23.7 56
    FOM01-0462 22.3 / 580 4400 197 44 112

    *Width is 20mm
